Embedded Motion‑Sensor Cabinet Light
- Model：
- WF-JSD2511-L
- LED density：
- 120灯/米
- CCT：
- 2700-6500K
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- 10W/米
- Installation Methods：
- PitMounted
- Certifications：
- Features：
- Wire‑lamp separation, solder‑free design for easy disassembly and assembly; maintenance does not require modification of existing wiring. Support single‑unit cutting to length as required. PC lampshade allows two installation angles: flat mounting and angled mounting. Anodized aluminum housing delivers excellent heat dissipation and anti‑fading performance. Stainless‑steel mounting clips ensure firm embedded installation. High color rendering Ra≥90 for true‑to‑life color reproduction and low light decay. Three versions available: standard, hand‑wave GIR sensor, human‑body PIR motion sensor. Custom lengths are supported.
- Structure & Craftsmanship

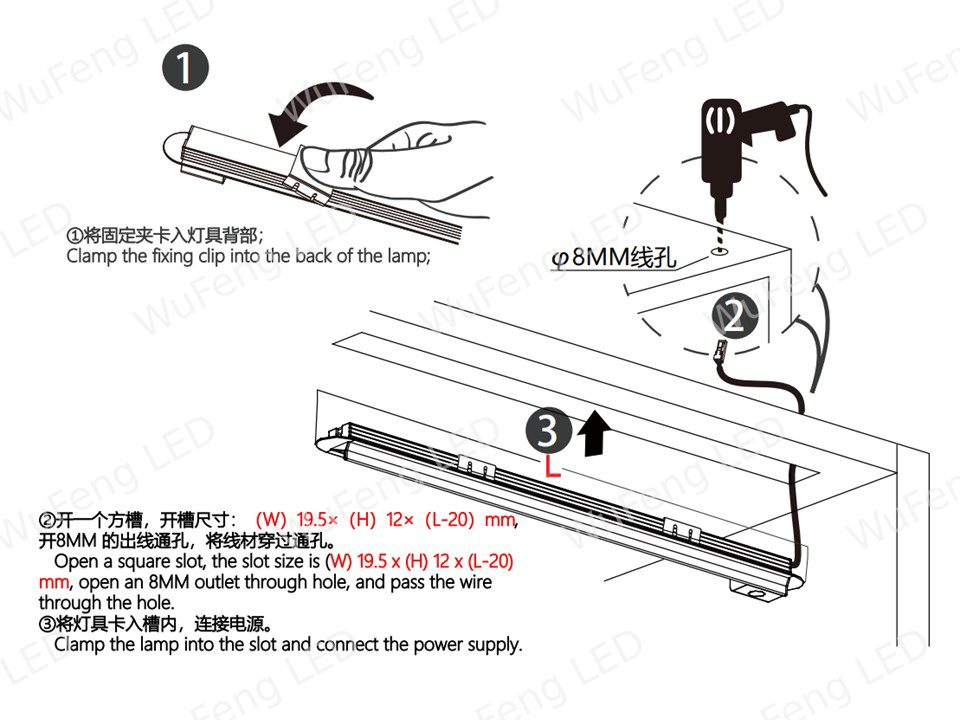

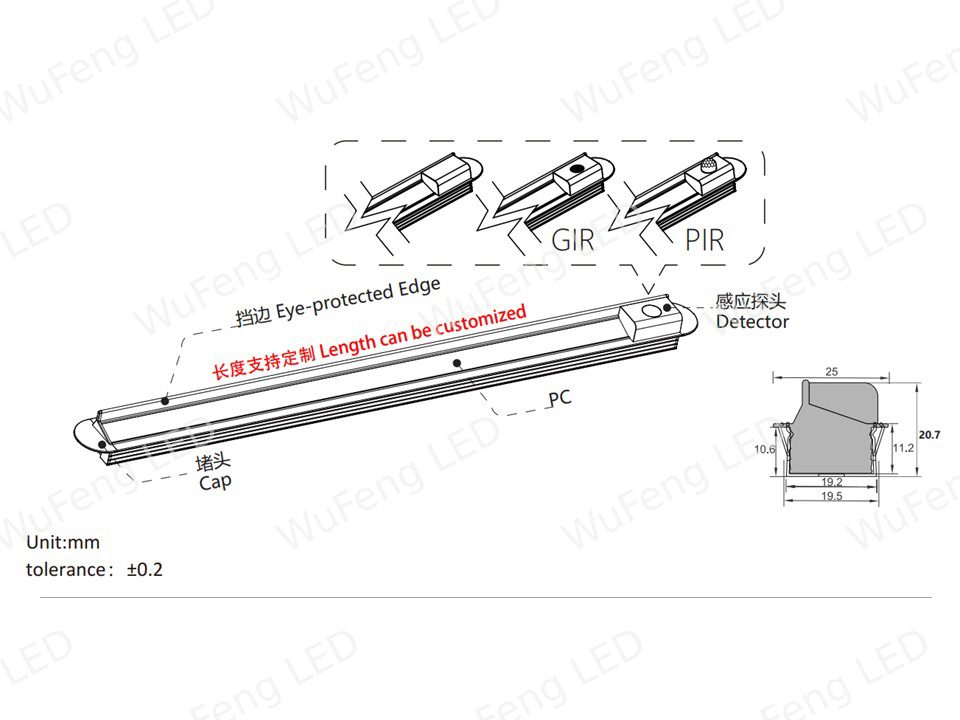

Housing: anodized aluminum; Lampshade & power connector: PC material; Mounting clips: stainless steel. Dimension: 25(W) × 20.7(H) × L(Length) mm, custom‑length available. Recessed cut‑out installation with adjustable lampshade angle.
- Electrical Specifications
Input Voltage: DC12V; Power: 10W/M (±10%); CCT: 2700K‑6500K; Luminous Flux: 350(±10%)Lm/M; CRI Ra≥90; Lumen Maintenance: Light decay ＜5%@1000h; IP Rating: IP20. Sensor modes: non‑sensor, hand‑wave GIR, human‑body PIR motion sensor.
- Operating Environment
Operating Temperature: ‑20℃~+40℃; Storage Temperature: ‑20℃~+60℃; Warranty: 20000 hours; Compliant with RoHS (EU) 2015/863.
- Application
Interior supplementary lighting for cabinets, wine cabinets, wardrobes and display cabinets. GIR hand‑wave and PIR motion‑sensor versions eliminate external switches to realize intelligent lighting control.
Category Item JSD2511B JSD2511B‑GIR JSD2511B‑PIR Appearance & Structure Dimension (W)25×(H)20.7×Length(mm) (W)25×(H)20.7×Length(mm) (W)25×(H)20.7×Length(mm) Housing Material Anodized Aluminum Anodized Aluminum Anodized Aluminum Lampshade Material PC PC PC Mounting Clip Stainless Steel Stainless Steel Stainless Steel Installation Method Embedded Embedded Embedded Electrical Parameters Input Voltage DC12V DC12V DC12V Power 10W/M(±10%) 10W/M(±10%) 10W/M(±10%) CCT 2700K‑6500K 2700K‑6500K 2700K‑6500K Luminous Flux 350(±10%)Lm/M 350(±10%)Lm/M 350(±10%)Lm/M CRI Ra≥90 Ra≥90 Ra≥90 Sensor Mode / Hand‑wave GIR Human‑body PIR Light Decay ＜5%@1000h ＜5%@1000h ＜5%@1000h Others IP Rating IP20 IP20 IP20 Warranty 20000hrs 20000hrs 20000hrs Operating Temperature -20℃～+40℃ -20℃～+40℃ -20℃～+40℃ Storage Temperature -20℃～+60℃ -20℃～+60℃ -20℃～+60℃ RoHS Directive (EU)2015/863 (EU)2015/863 (EU)2015/863
