LED Round Spot Light
- Model：
- WF-JSD70R-2135-12V
- Input voltage：
- DC 12V
- Output：
- 1.7W
- IP Rating：
- IP20
- Certifications：
- —
- Features：
- Soft light with 120° wide beam angle, flicker‑free and UV‑free. Screw‑mounted, suitable for cabinet, display case, jewelry counter and various indoor local & ambient lighting.
- Product Features
Low power consumption, energy‑saving & eco‑friendly, long service life. Soft light output, 120° wide beam angle for wide illumination range, stable performance. Safe low‑voltage DC12V operation. Firm screw‑on installation. No noise, flicker‑free, UV‑free.
- Structure & Craft

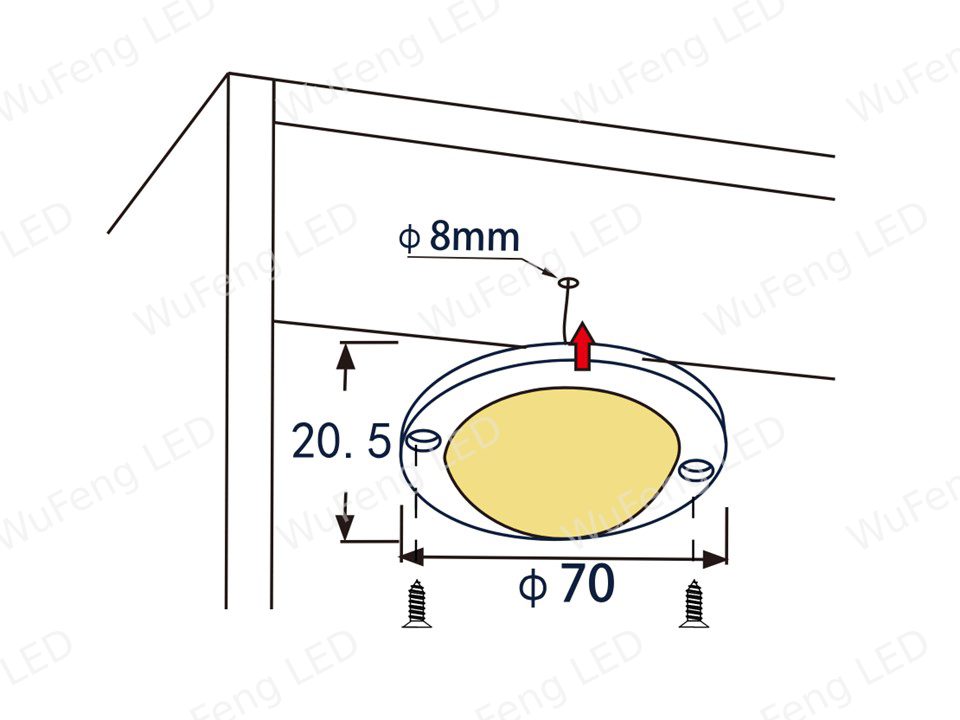

Material: AL+PC; IP rating: IP20; CE certified; Installation: screw mounting.
- Electrical & Optical Performance
Input DC12V, power 1.7W; 21PCS 2835 LED chips; CCT 2700‑6500K; CRI＞80; Luminous flux 130Lm (±10%); beam angle 120°; light decay ＜5%@1000h; switch mode: external switch.
- Working Environment
Operating temperature ‑20℃～+40℃; storage temperature ‑20℃～+60℃.
- Application Scenarios
Local lighting for cabinets, drawers, furniture, shop windows, display cabinets and jewelry counters. Also for ambient decorative lighting in restaurants, museums, offices, reading rooms, bars, KTV and other venues.
| Category | Item | Value |
|---|---|---|
| Appearance & Structure | Material | Aluminum AL |
| Installation Method | Screw mounting | |
| Electrical & Optical | Input Voltage | DC12V |
| Power | 1.7W | |
| Switch Mode | External switch | |
| LED Model | 2835 | |
| LED Qty | 21PCS | |
| CCT | 2700‑6500K | |
| CRI | CRI＞80 | |
| Luminous Flux | 130Lm(±10%) | |
| Beam Angle | 120° | |
| Light Decay | ＜5%@1000h | |
| Others | Certification | CE |
| IP Rating | IP20 | |
| Operating Temperature | -20～+40℃ | |
| Storage Temperature | -20～+60℃ |
Note: Actual values are affected by CCT and other factors; refer to test report for official data.
