LC12S Series Mini Sensor Switch
- Model：
- WF-LC12S-IR/GIR/TD/PIR
- Certifications：
- —
- Features：
- LC12S‑Series Mini Sensor Switch, cut‑out diameter 12 mm, compact size. Four sensing modes are optional, suitable for on/off / dimming control of furniture lights such as cabinet lights, wine‑cabinet lights and wardrobe lights.
・Product Features

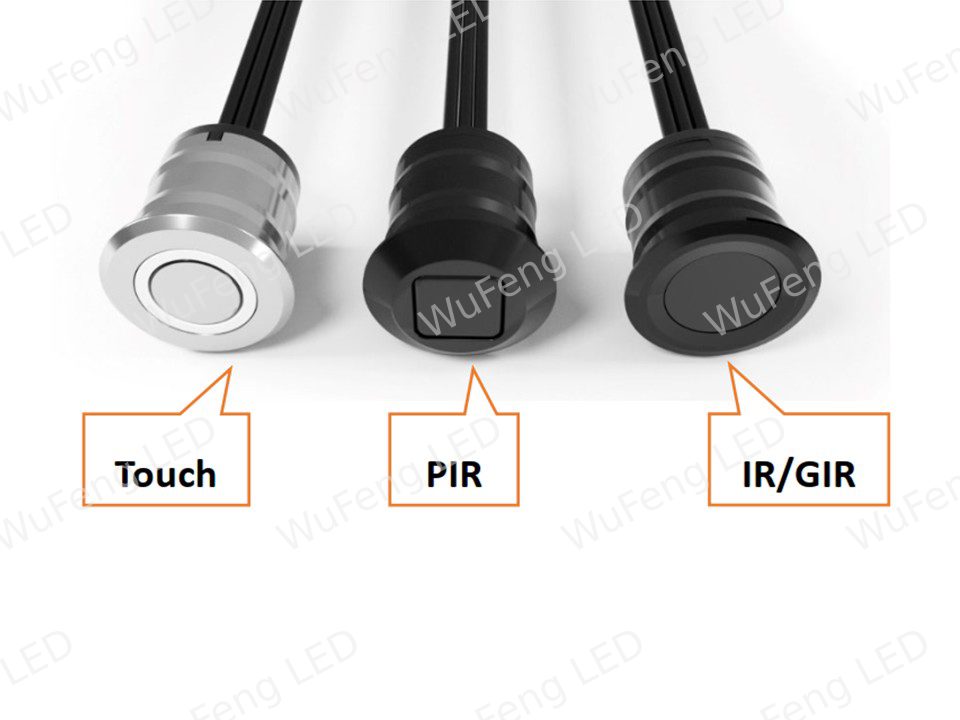

Four sensor options available (Door‑sensor WF‑LC12S‑IR, Hand‑wave sensor WF‑LC12S‑GIR, PIR motion sensor WF‑LC12S‑PIR, Touch‑dimming sensor WF‑LC12S‑TD); compact size for easier installation; metal housing with premium texture, ideal for high‑end furniture lights; compatible with Wufeng built‑in power supply / built‑in control box.
・Structure & Process

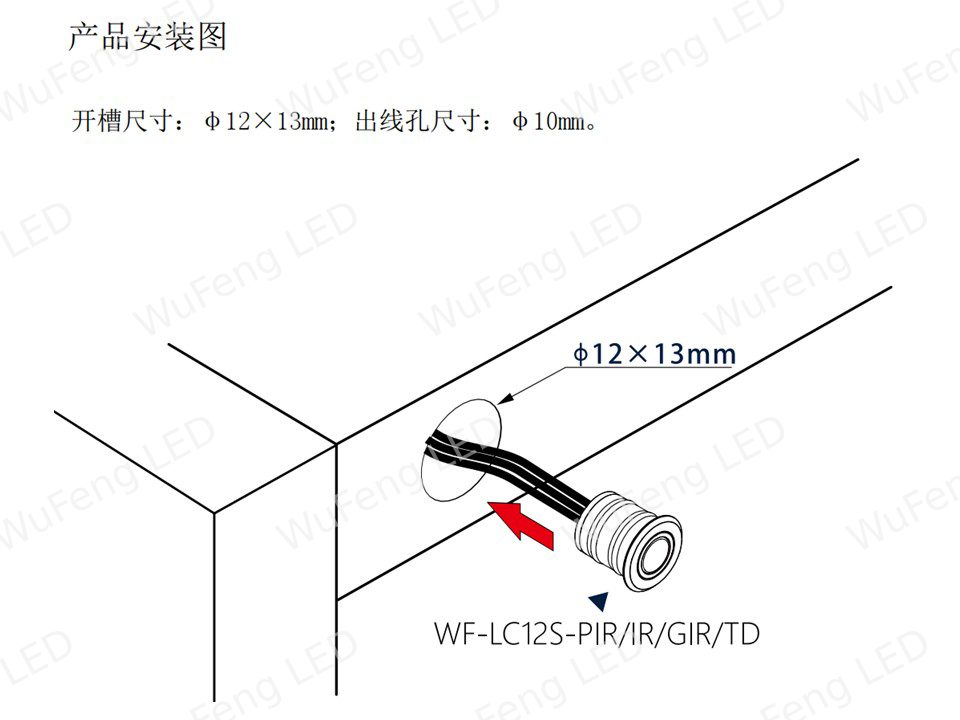

Housing: AL aluminum alloy with anodized surface treatment; Dimensions φ14.6×15mm(PIR)/ φ14.6×13.9mm(IR/GIR/TD), cut‑out size φ12×13mm; recessed installation; Housing color: Black(PIR/IR), Silver(GIR/TD); Individually packed in PE bag + inner box.
・Electrical Performance
Input Voltage DC12‑24V (±5%); Four switch modes: Motion sensing (≤2M), door sensing (3‑6CM), hand‑wave sensing (3‑8CM), touch sensing; The touch model and hand‑wave model support stepless dimming (10%‑100%), soft on‑off with memory function, dimming unavailable for the other two versions; IP20 protection rating, flame‑retardant rating 94V‑0; Service life＞20000hrs.
・Operating Environment
Operating temperature:‑20℃~+40℃, storage temperature:‑20℃~+60℃; RoHS compliant.
・Application

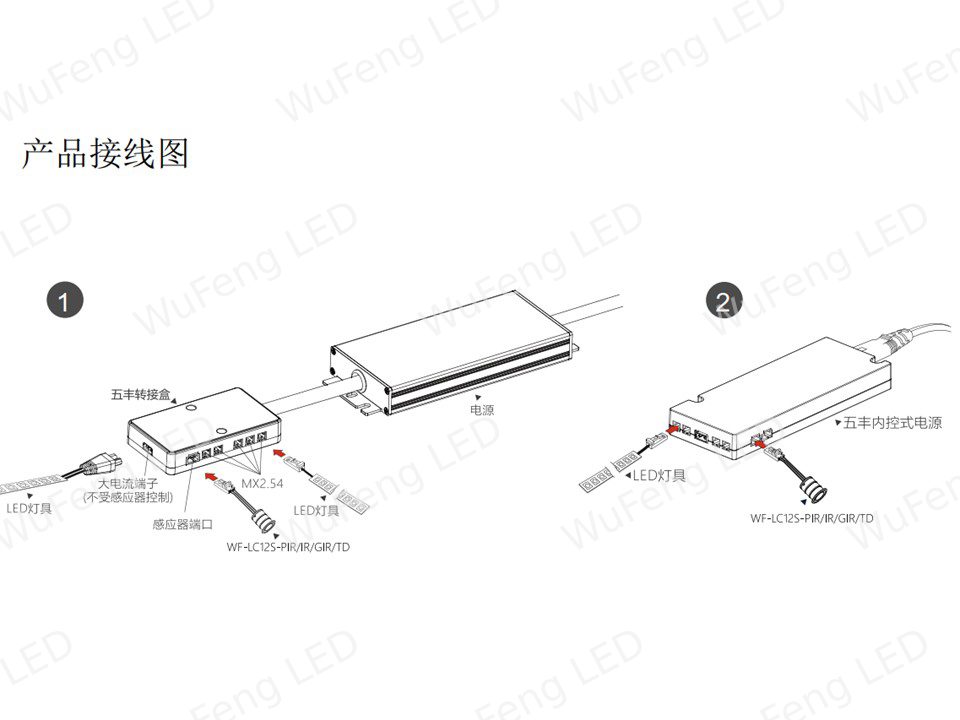

Widely used as recessed smart sensor switches for premium furniture lighting such as cabinet lights, wardrobe lights and wine‑cabinet lights. Works with Wufeng built‑in power supply / control box and LED strips for intelligent light control.
| Parameters | Model | WF‑LC12S‑PIR | WF‑LC12S‑IR | WF‑LC12S‑GIR | WF‑LC12S‑TD |
|---|---|---|---|---|---|

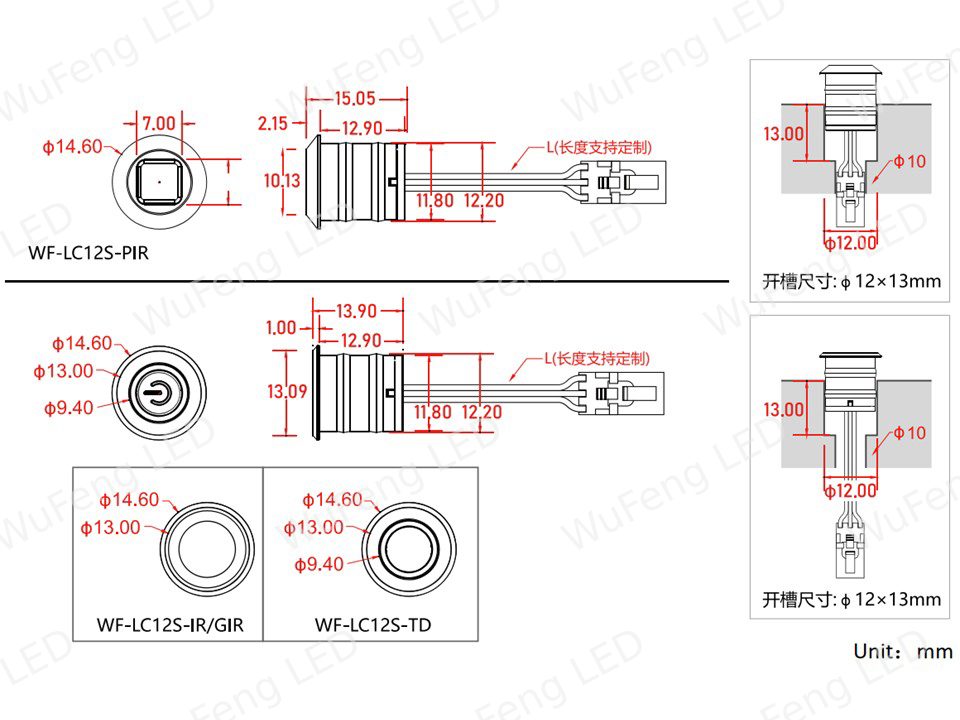

| Appearance & Structure | Product Size | φ14.6×15 | φ14.6×13.9 (mm) | ||
| Cut‑out Dimension | φ12×13 (mm) | ||||
| Housing‑Material | AL | ||||
| Housing‑Color | Black | Black | Black | Silver | |
| Installation Type | Recessed | ||||
| Surface Treatment | Anodizing | ||||
| Individual Package | PE bag + inner box | ||||
| Electrical Parameters | Input Voltage | DC12‑24V (±5%) | |||
| Switch Mode | PIR Motion Sensor | Door Sensor | Hand‑wave Sensor | Touch Sensor | |
| Sensing Distance(1) | ≤2M | 3‑6CM | 3‑8CM | / | |
| Dimming | / | / | Stepless Dimming | Stepless Dimming | |
| Others | Protection Rating | IP20 | |||
| Flame‑retardant Rating | 94V‑0 | ||||
| Service Life | ＞20000hrs | ||||
| Operating Temperature | -20℃ ~ +40℃ | ||||
| Storage Temperature | -20℃ ~ +60℃ | ||||
| RoHS Compliance | Compliant |
Note: (1) Sensing distance may vary due to environmental factors, subject to actual measured value.
