Touch Dimmer Metal Switch
- Model：
- WF-LC1617-TC&TD
- Input voltage：
- DC5-24V（±5%）
- Output：
- 3A
- IP Rating：
- 94V-0
- Installation Methods：
- PitMounted
- Certifications：
- Features：
- This product is a low-voltage embedded capacitive touch switch with an aluminum alloy metal housing. Compact in size, it is specially designed to match furniture LED lighting, compatible with low-voltage lamps such as cabinet lights, wardrobe lights and LED strips.
- Product Overview

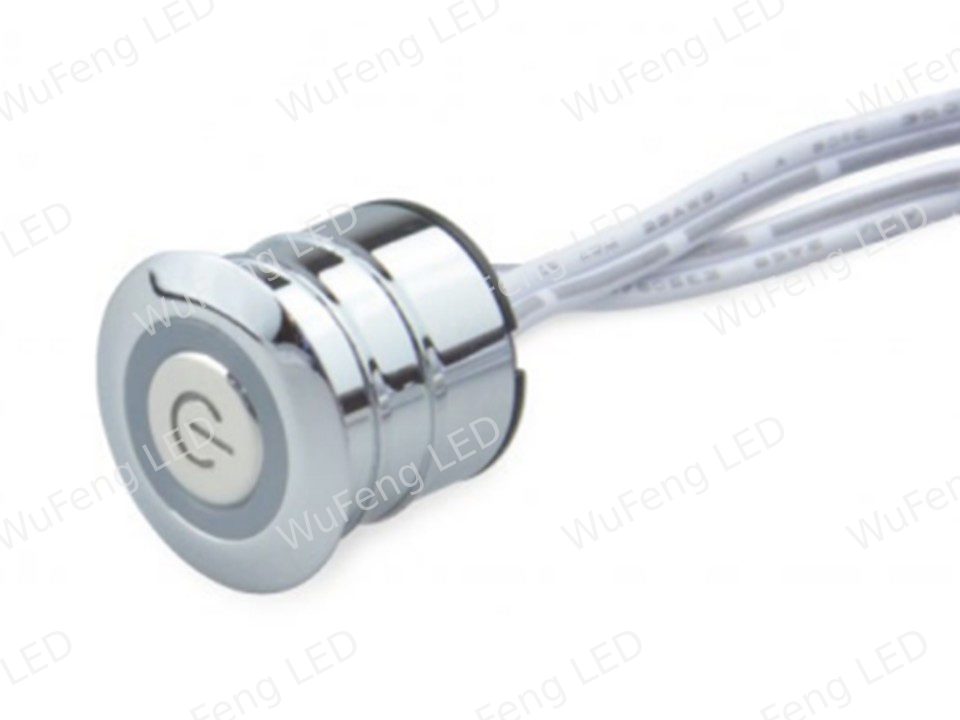

WF-LC1617-TC/TD is an embedded aluminum alloy touch sensor switch, compatible with DC5-24V low-voltage LED lights. TC model only supports on/off control, TD model supports stepless dimming. It is widely used for cabinet lighting control with compact metal housing for easy installation.
- Product Features
Touch control: short press for on/off, long press for smooth stepless dimming (TD version);
Indicator light color customizable;
Compact size, saves installation space;
AL aluminum housing, flame retardant rating 94V-0, robust and durable;
Wide voltage DC5-24V, max 3A output, max load 36W @12V.
Lighting Advantages
Matched with low-voltage LED strips, TD version provides smooth stepless dimming to adjust brightness freely. Touch operation without mechanical wear for longer service life, ideal for soft cabinet ambient lighting.
Application Scenarios
Suitable for LED partial lighting in home cabinets, wardrobes, wine cabinets and commercial display cabinets.
Performance Parameters
| Category | Item | Specification |
|
Product Info |
Model | WF‑LC1617‑TC/TD |
| Housing Material | AL (Aluminum Alloy) | |
| Mounting | Flush Mounted | |

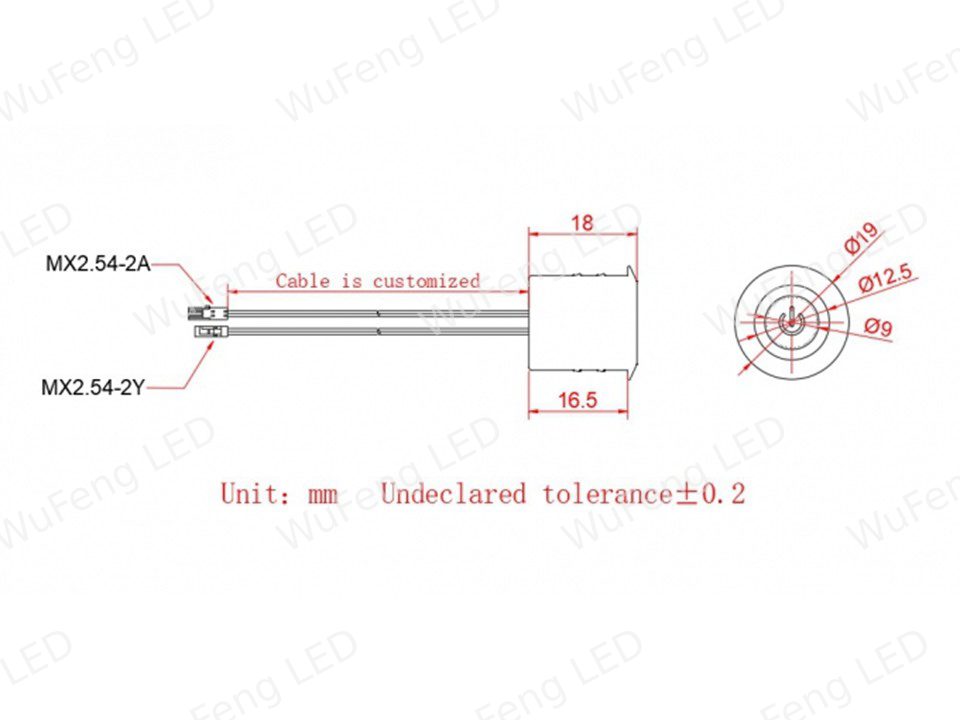

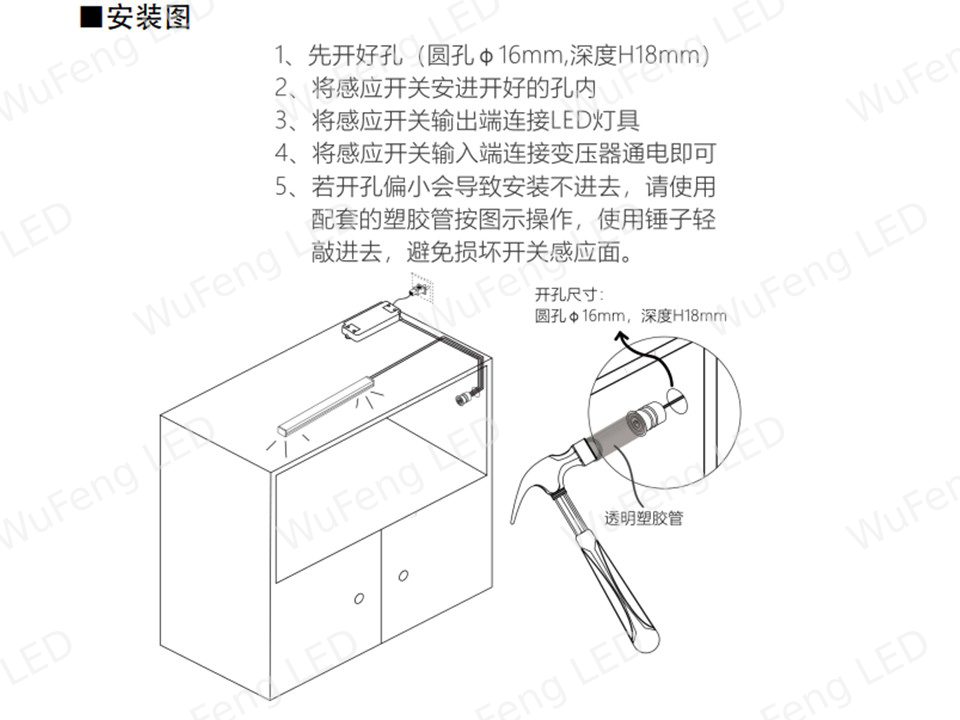

| Cutout Size | φ16×H18mm | |
| Control Method | Touch Sensor (Short press On/Off, Long press Dimming) | |
| Indicator | Custom indicator color | |
|
Electrical Spec |
Input Voltage | DC5‑24V（±5%） |
| Max Output Current | 3A | |
| Max Load Power | 36W @12V | |
| Sensing Distance | 3‑6CM | |
| Dimming Function | TC: On/Off only; TD: Stepless Dimming | |
| Flame Retardant | 94V‑0 | |
|
Environment |
Working Temp | -20~+50℃ |
| Storage Temp | -20~+60℃ |
