• Product Features
  Adopts aluminum‑alloy housing with solid texture; embedded touch‑sensor control, short touch for light ON/OFF, supports three‑stage dimming. No mechanical buttons for simple operation; built‑in circuit protection ensures stable and reliable performance. Suitable for low‑voltage LED lighting control of various cabinets, sensitive touch without mechanical wear.
• Structure & Process

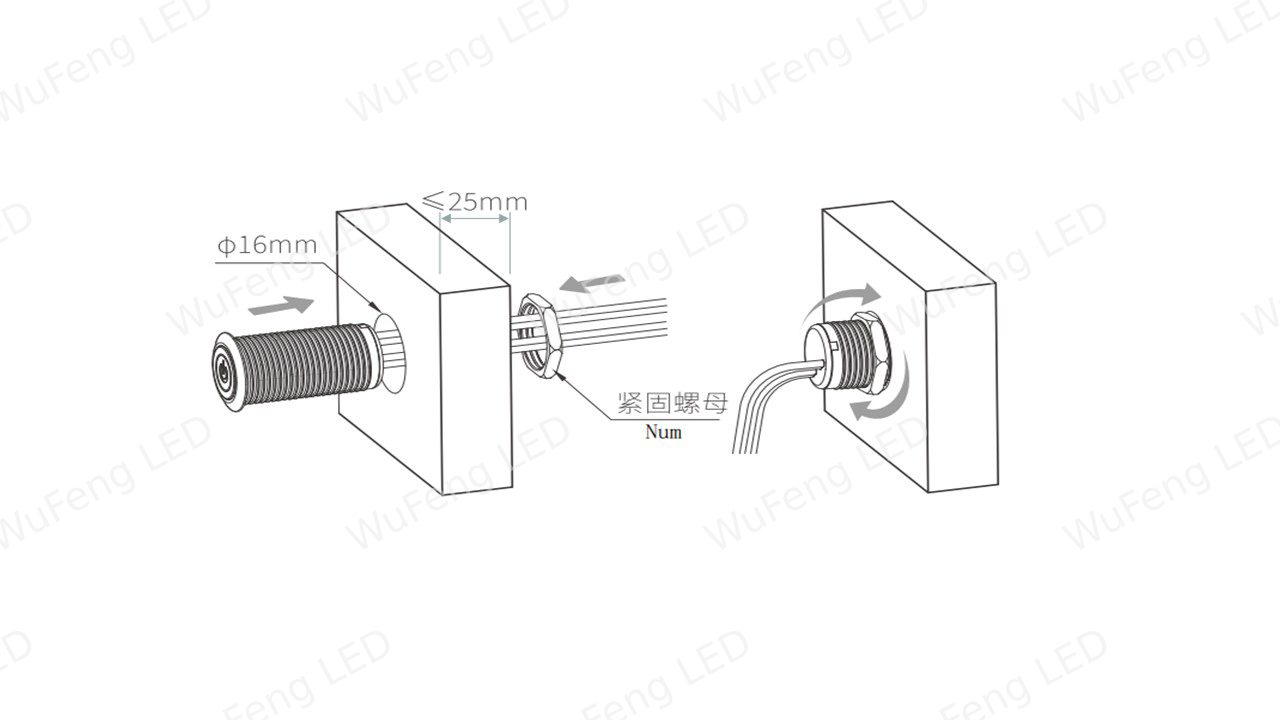

  Aluminum‑alloy housing; Product dimension Φ19*32.2mm, cut‑out size Φ16mm. Embedded cut‑out installation. Hidden mounting keeps cabinet appearance intact, suitable for installation in cabinets, wardrobes, wine cabinets and display cabinets.
• Electrical Performance
  Input Voltage: DC5‑24V (±5%); Max output current: 3A; Max load power: 36W @12V. Triggered by touch sensing, supports three‑stage dimming. Protection class: IP20; Flame‑retardant rating: 94V‑0; Service life:＞20000hrs. Compliant with RoHS (E)2015/863 environmental standard.
• Working Environment
  Operating temperature:‑20℃~+40℃；Storage temperature:‑20℃~+60℃. Suitable for long‑term indoor cabinet application.
• Application Scenarios
  Widely used inside wardrobes, cabinets, wine cabinets and display cabinets to realize touch‑control ON/OFF and three‑stage dimming for cabinet lighting.

Note: All data subject to test report.
