Surface Door/Hand-sweep Sensor Switch
- Model：
- WF-LC2816-IR/GIR
- Input voltage：
- DC5-24V
- IP Rating：
- IP20
- Certifications：
- —
- Features：
- This series of surface‑mount sensor switches features a unified aluminum alloy housing and is available in two functional versions: door‑operated sensor and hand‑wave sensor. Fixed by screws for surface mounting, they are compatible with DC5‑24V low‑voltage LED lights. Widely applied in cabinets, wine cabinets and wardrobes, they enable light control via cabinet‑door linkage or hand‑wave gestures. The GIR version supports stepless dimming.
- Product Features

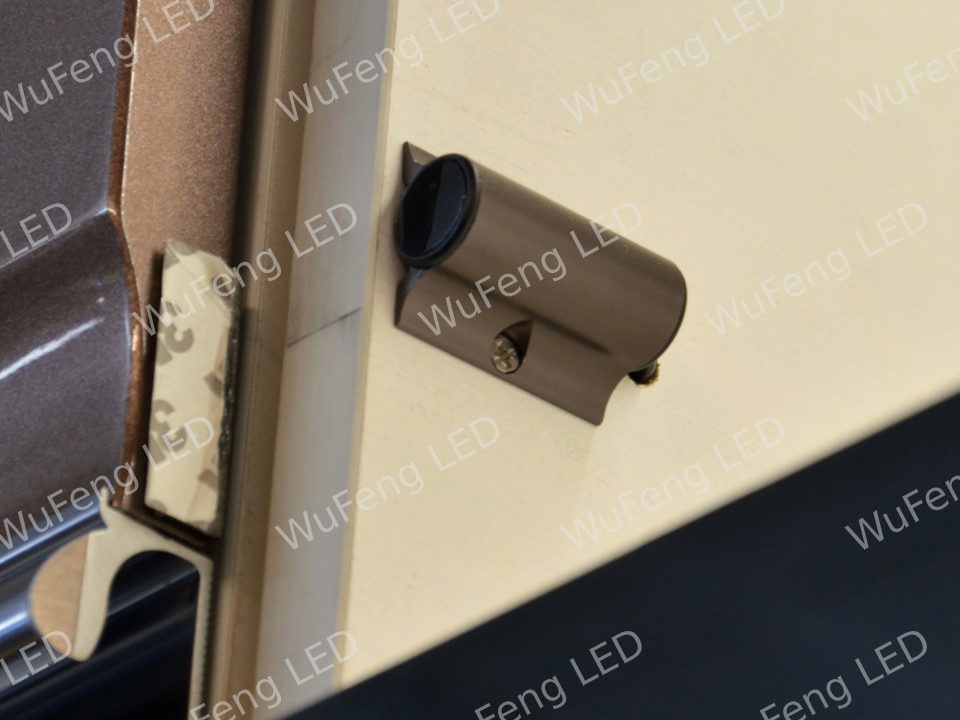

Same housing with two sensor options: WF‑LC2816‑IR V2 door‑operated sensor — lights turn on when the cabinet door opens and off when it closes; WF‑LC2816‑GIR V2 hand‑wave sensor — turn lights on with one hand wave and off with another, supporting stepless dimming. Surface‑mount installation with screws for easy and quick fitting. Gun‑metal aluminum alloy housing with anodized finish for premium appearance and texture. High and low temperature resistance, service life＞20000 hours, flame‑retardant rating 94V‑0 for safe and reliable operation.
- Structure & Process

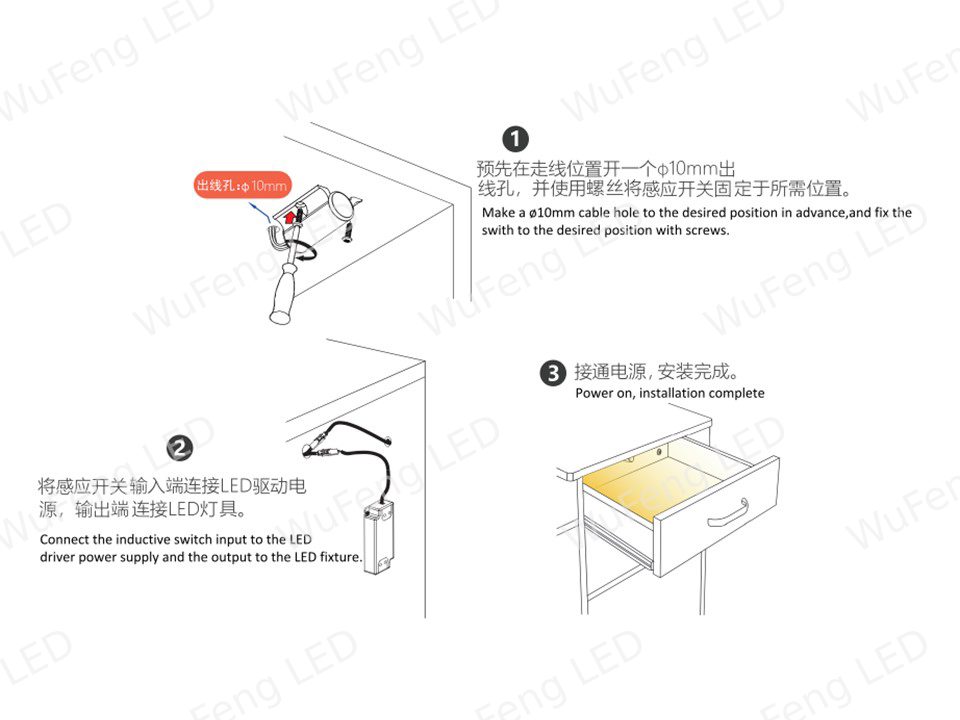

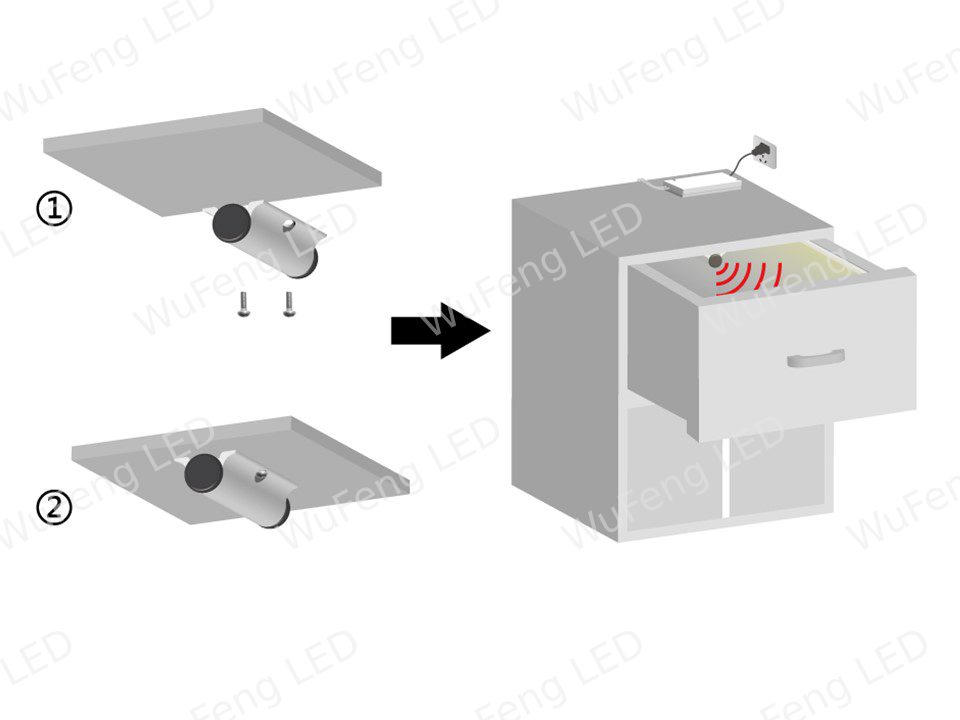

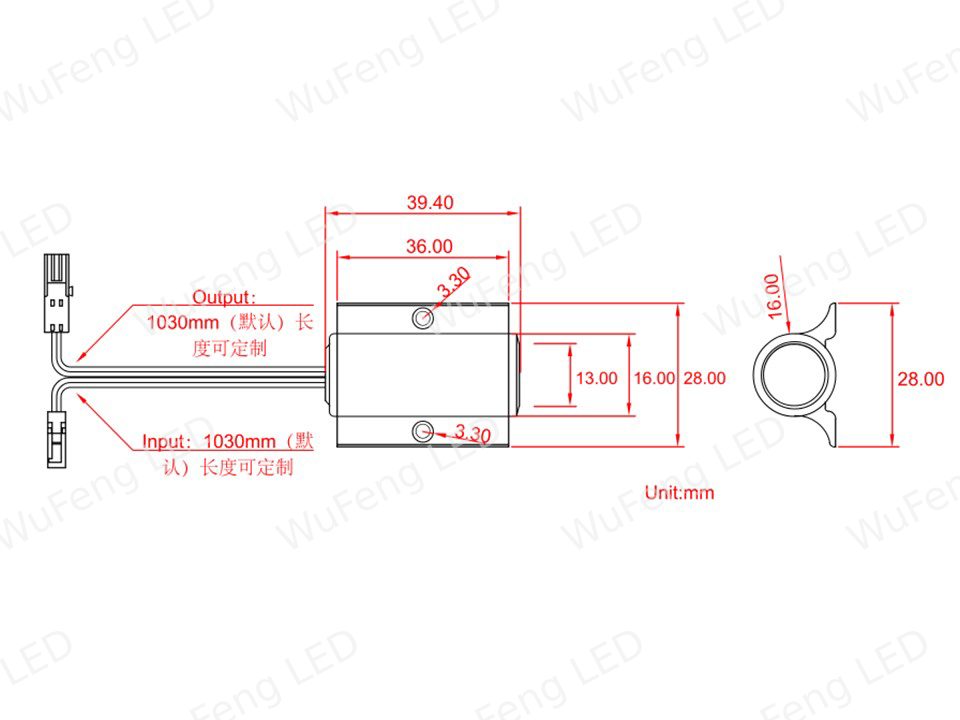

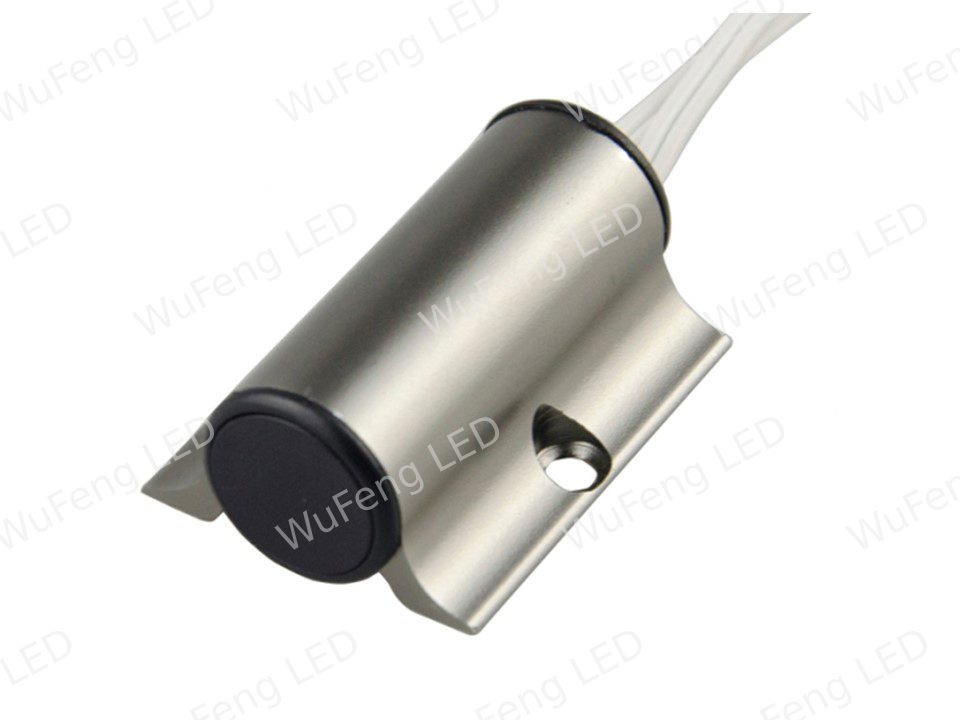

Housing: AL aluminum alloy, gun‑metal color, anodized surface treatment. Product dimension: 39.4×28×16 mm. Surface‑mount fixing by screws. Packaging: PE bag + inner box.
- Electrical Specifications
Input Voltage: DC5‑24V (±5%); Max. Output Current: 3A; Max. Load Power: 36W@12V; Sensing Distance: 3‑8 CM; Ingress Protection: IP20; Flame‑retardant Rating: 94V‑0. Compatible with various low‑voltage LED strip loads.
- Operating Environment
Operating Temperature: ‑20℃ ~ +40℃; Storage Temperature: ‑20℃ ~ +60℃. Compliant with RoHS environmental standards.
- Application Scenarios

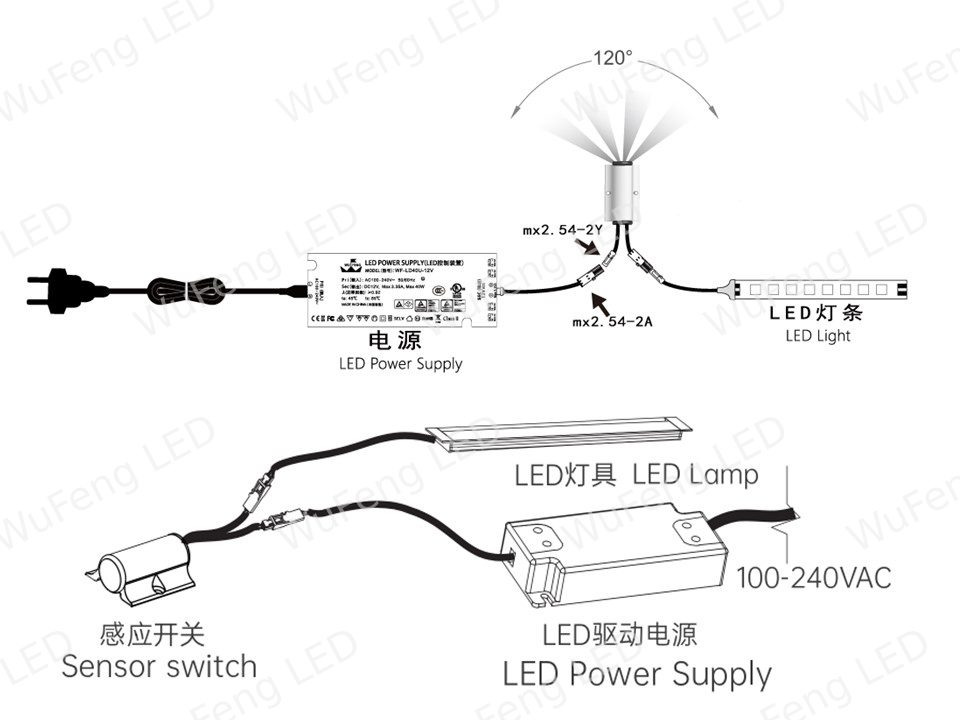

Suitable for wardrobes, cabinets, wine cabinets and display cabinets. Works with low‑voltage LED strips to realize automatic door‑triggered control or hand‑wave gesture lighting control.
Category Parameter Item Parameter Value Product Information
Model No. WF‑LC2816‑IR V2, WF‑LC2816‑GIR V2 Product Dimension 39.4×28×16 (mm) Housing Material AL Aluminum Alloy Housing Color Gun‑metal Surface Treatment Anodized Installation Method Surface‑mount, screw fastening Flame‑retardant Rating 94V‑0 Electrical Parameters
Input Voltage DC5‑24V (±5%) Max. Output Current 3A Max. Load Power 36W@12V Sensing Distance 3‑8CM Switching Mode IR: Door‑operated switch; GIR: Hand‑wave switch (supports stepless dimming) Ingress Protection Rating IP20 Environmental Parameters
Operating Temperature ‑20℃ ~ +40℃ Storage Temperature ‑20℃ ~ +60℃ Service Life ＞20000hrs Environmental Compliance RoHS compliant
Note: Test ambient temperature is 25±2℃. Actual data shall be subject to the test report.
