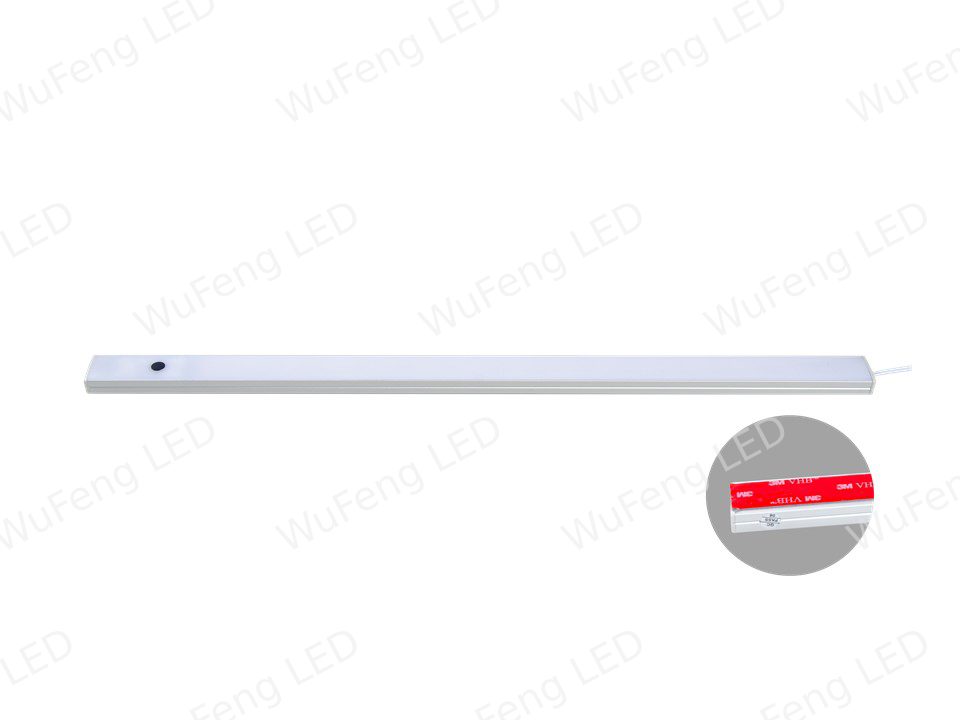

Surface‑mount Hand‑Sweep Sensor Linear Light
- Model：
- WF-LT2310-6028-GIR-12V
- LED density：
- 120灯/米
- CCT：
- 2700-6500K
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- 10W/米
- Certifications：
- Features：
- Suitable for partial lighting of various cabinets, display cabinets, wardrobes, bookcases and other furniture. Built‑in hand‑sweep sensor switch, wave your hand to turn on / off the light.
●Product Overview
This surface‑mount hand‑sweep sensor linear light is an intelligent induction LED fixture designed for cabinet lighting and ambient illumination. Surface‑mount installation requires no grooving. Exquisite 23.4×11.4 mm housing. Hand‑sweep sensor enables on‑off control by hand waving. High‑density 120 LEDs per meter delivers luminous flux of 360 Lm/M. High CRI RA≥95 restores true‑to‑life colors. It is a high‑quality upgrade option for cabinet lighting such as kitchen cabinets and wardrobes.
This surface‑mount hand‑sweep sensor linear light is an intelligent induction LED fixture designed for cabinet lighting and ambient illumination. Surface‑mount installation requires no grooving. Exquisite 23.4×11.4 mm housing. Hand‑sweep sensor enables on‑off control by hand waving. High‑density 120 LEDs per meter delivers luminous flux of 360 Lm/M. High CRI RA≥95 restores true‑to‑life colors. It is a high‑quality upgrade option for cabinet lighting such as kitchen cabinets and wardrobes.
●Sensor Control
Adopts infrared hand‑sweep sensing technology with 3‑6 cm sensing distance, sensitive and fast response. Wave your hand to switch light on and off without touching the panel, especially convenient and hygienic for cooking and other scenarios with occupied hands. Surface‑mount design requires no cabinet grooving, fix directly for use.
Adopts infrared hand‑sweep sensing technology with 3‑6 cm sensing distance, sensitive and fast response. Wave your hand to switch light on and off without touching the panel, especially convenient and hygienic for cooking and other scenarios with occupied hands. Surface‑mount design requires no cabinet grooving, fix directly for use.
●Structure & Craft
Housing made of AL aluminum alloy with anodized surface treatment, anti‑corrosion, wear‑resistant and premium texture. PC diffuser provides even soft light and effectively reduces glare. Surface‑mount structure fits various cabinet surfaces for quick and firm installation. Each unit individually packed in PE bag for safe transportation and storage.
Housing made of AL aluminum alloy with anodized surface treatment, anti‑corrosion, wear‑resistant and premium texture. PC diffuser provides even soft light and effectively reduces glare. Surface‑mount structure fits various cabinet surfaces for quick and firm installation. Each unit individually packed in PE bag for safe transportation and storage.
●Optical Performance
Equipped with 2835 LED chips, 120PCS/M high‑density arrangement. Max power 10 W/M, luminous flux 360 Lm/M (±10 %) for outstanding brightness. 120° wide beam angle ensures uniform illumination without dark zones. Adjustable CCT range 2700‑6500K (±200K). High color rendering RA≥95 reproduces authentic colors. Lumen depreciation＜5 %@1000h, service life＞20000hrs.
Equipped with 2835 LED chips, 120PCS/M high‑density arrangement. Max power 10 W/M, luminous flux 360 Lm/M (±10 %) for outstanding brightness. 120° wide beam angle ensures uniform illumination without dark zones. Adjustable CCT range 2700‑6500K (±200K). High color rendering RA≥95 reproduces authentic colors. Lumen depreciation＜5 %@1000h, service life＞20000hrs.
| Category | Item | Value |
| Product Info | Product Name | Surface‑mount Hand‑Sweep Sensor Linear Light |

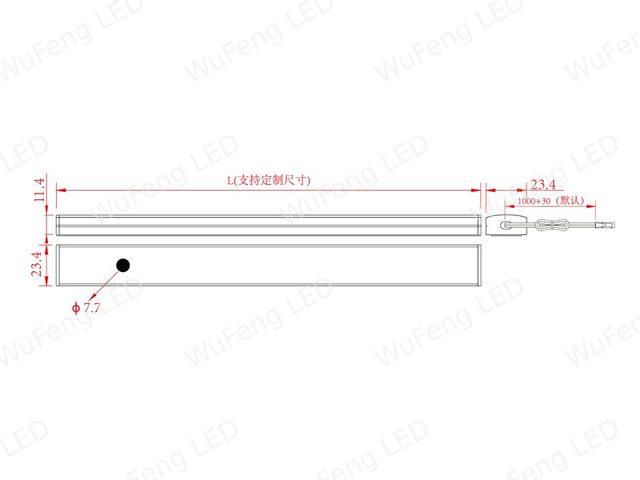

| Housing Dimension | 23.4×11.4 mm | |
| Installation | Surface‑mount, no grooving | |
| Sensor Type | Infrared hand‑sweep sensor | |
| Sensing Distance | 3‑6 cm | |
| Housing Material | AL aluminum alloy, anodized | |
| Packing | Individual PE bag | |
| Electrical‑Optical | LED Chip | 2835,120PCS/M |
| Max Power | 10 W/M | |
| Luminous Flux | 360 Lm/M (±10%) | |
| Beam Angle | 120° | |
| CCT | 2700‑6500K (±200K) | |
| RA | ≥95 | |
| Lumen Depreciation | ＜5%@1000h | |
| Service Life | ＞20000hrs |
