Recessed 45° Angle‑Emitting Linear Light
- Model：
- WF-LT2409-6028-12V-T
- LED density：
- 120PCS/M
- CCT：
- 2700-6500K
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- MAX 10W/M
- Certifications：
- Features：

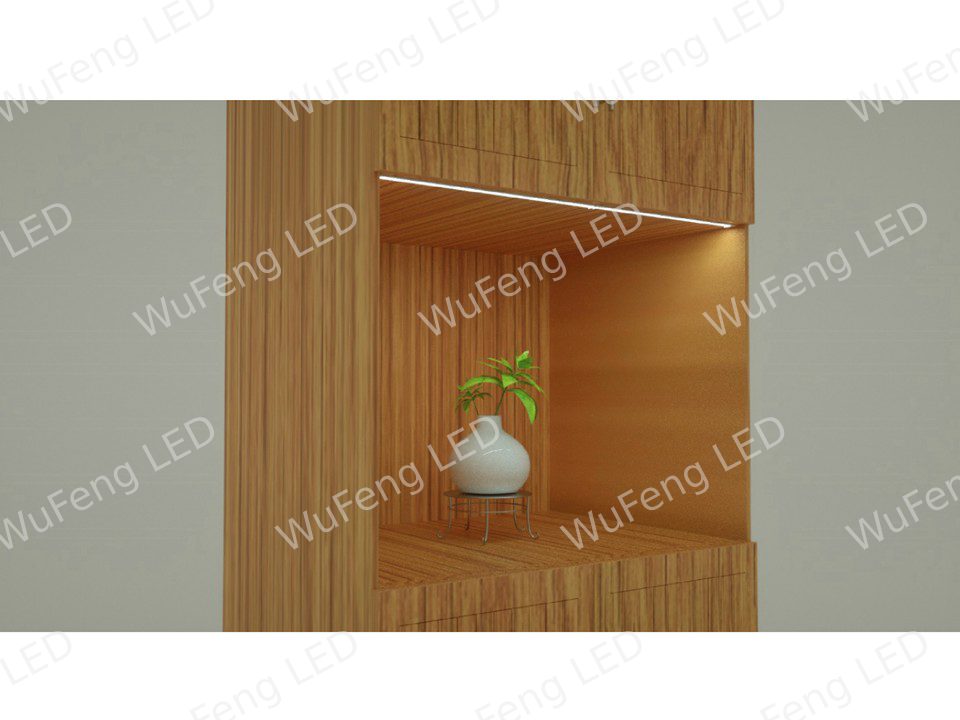

- Recessed installation, 45‑degree angled light output, light visible without seeing the fixture. Ideal for accent lighting in cabinets, display cabinets and wine cabinets.
●Product Overview
This high‑quality LED linear light is designed for decorative furniture lighting and ambient illumination. Slim 24×9 mm housing constructed of aluminum alloy and PC for durability. 120 LEDs per meter deliver luminous flux of 410 Lm/M with high brightness and even light distribution. Custom lengths available up to 2200 mm, suitable for linear lighting of various cabinets and spaces.
This high‑quality LED linear light is designed for decorative furniture lighting and ambient illumination. Slim 24×9 mm housing constructed of aluminum alloy and PC for durability. 120 LEDs per meter deliver luminous flux of 410 Lm/M with high brightness and even light distribution. Custom lengths available up to 2200 mm, suitable for linear lighting of various cabinets and spaces.
●Installation Method

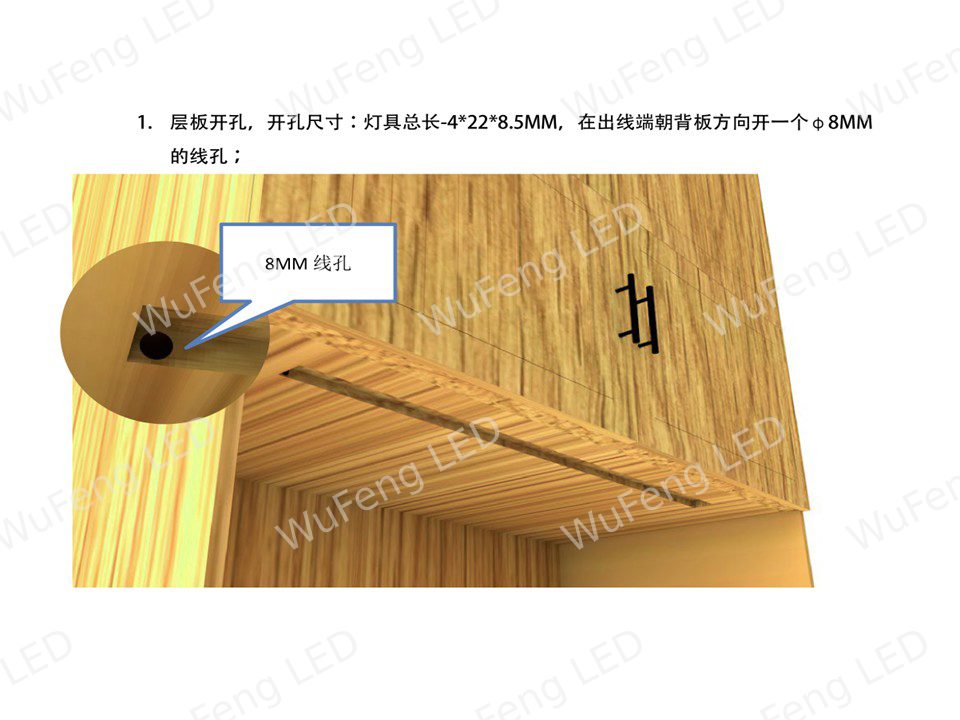

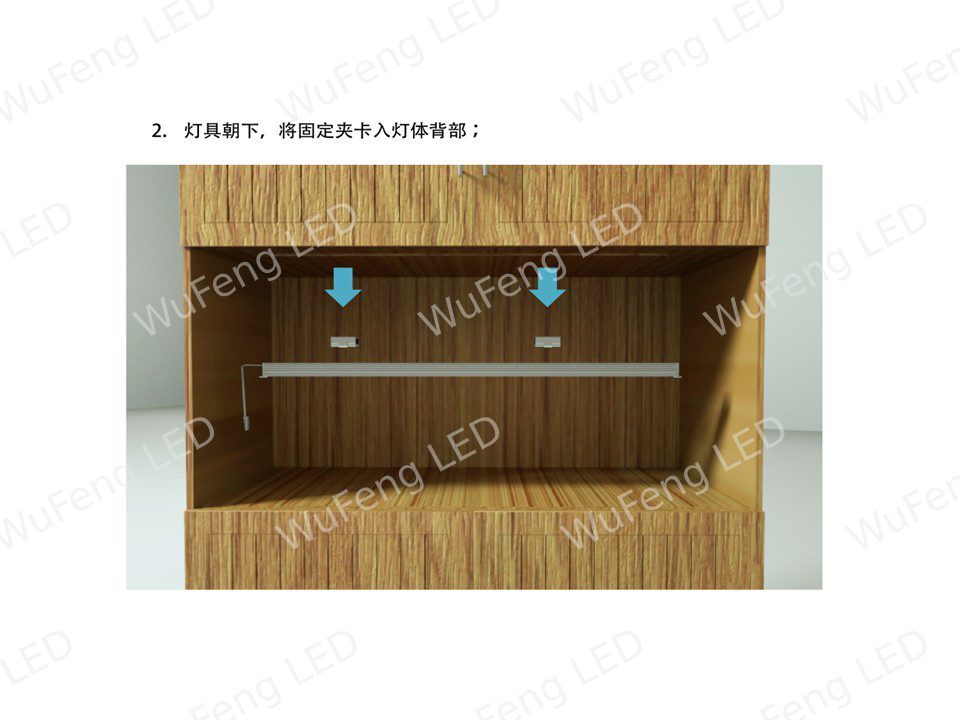

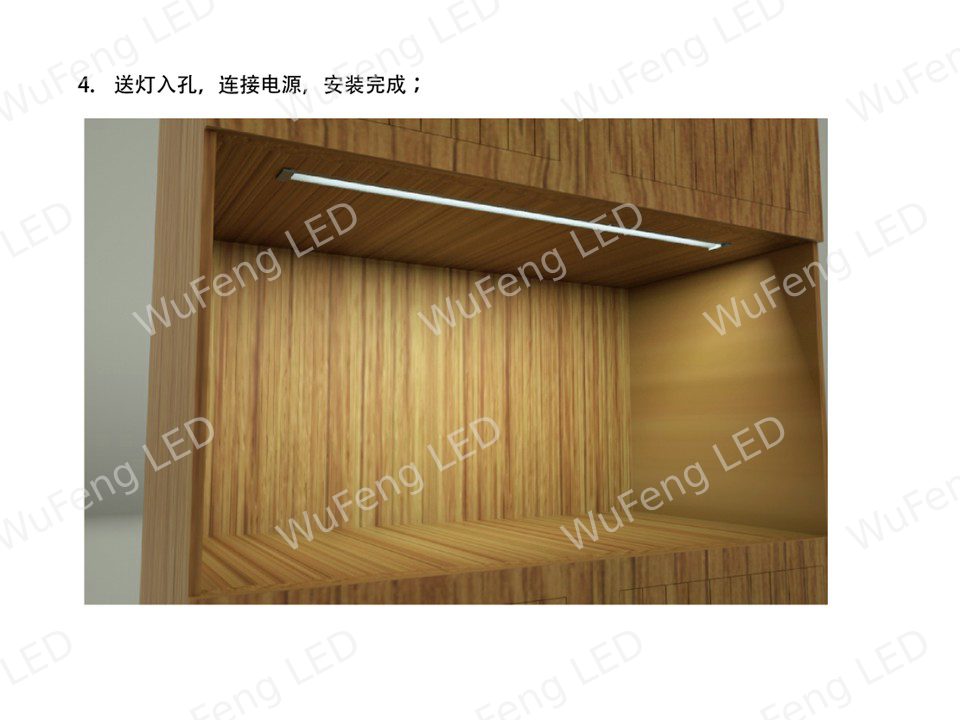

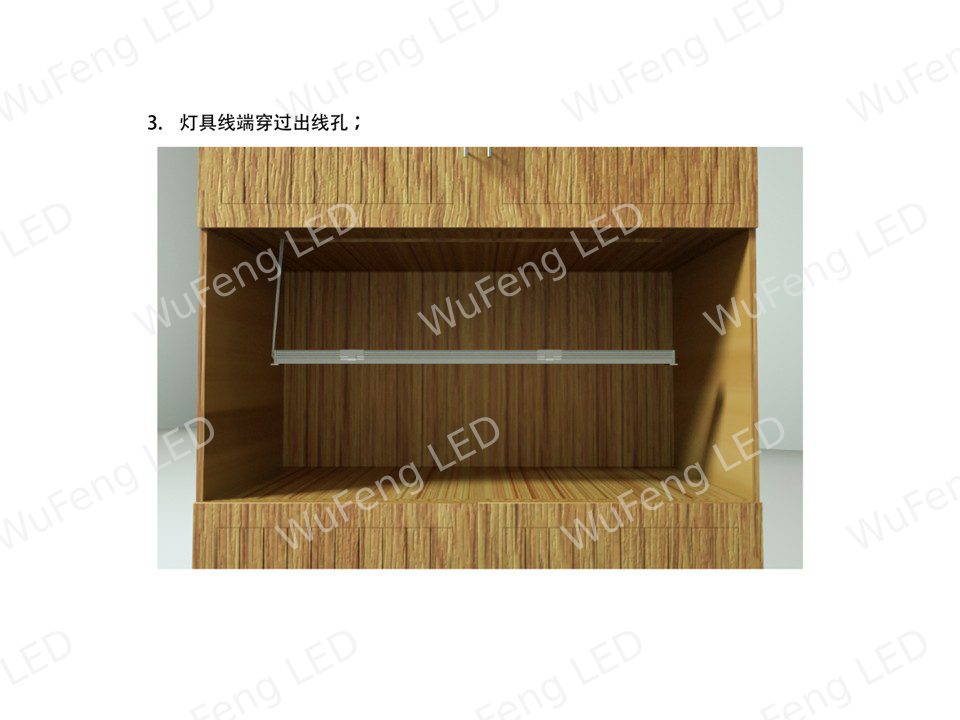

Compact cross‑section 24×9 mm supports multiple installation options: recessed or surface‑mounted according to cabinet structure. Customizable length up to 2200 mm to fit different dimensions. Quick and easy installation with clean integrated appearance.
Compact cross‑section 24×9 mm supports multiple installation options: recessed or surface‑mounted according to cabinet structure. Customizable length up to 2200 mm to fit different dimensions. Quick and easy installation with clean integrated appearance.
●Structure & Craft
Aluminum alloy housing provides excellent heat dissipation, robustness and premium texture. PC diffuser ensures soft uniform light and effective glare reduction. Combined aluminum‑PC structure balances heat dissipation and light transmission. Streamlined integrated design features low lumen depreciation and long service life.
Aluminum alloy housing provides excellent heat dissipation, robustness and premium texture. PC diffuser ensures soft uniform light and effective glare reduction. Combined aluminum‑PC structure balances heat dissipation and light transmission. Streamlined integrated design features low lumen depreciation and long service life.
●Optical Performance
Adopts 2835 LED chips, 120 PCS/M high‑density arrangement. Max power 10 W/M, luminous flux 410 Lm/M (±10 %), high brightness and energy‑saving. Wide CCT selection 2700‑7000 K, CRI Ra≥80 for authentic color rendering. Lumen depreciation＜5 %@1000 h, service life＞20000 hrs for stable long‑term brightness.
Adopts 2835 LED chips, 120 PCS/M high‑density arrangement. Max power 10 W/M, luminous flux 410 Lm/M (±10 %), high brightness and energy‑saving. Wide CCT selection 2700‑7000 K, CRI Ra≥80 for authentic color rendering. Lumen depreciation＜5 %@1000 h, service life＞20000 hrs for stable long‑term brightness.
●Application Scenarios

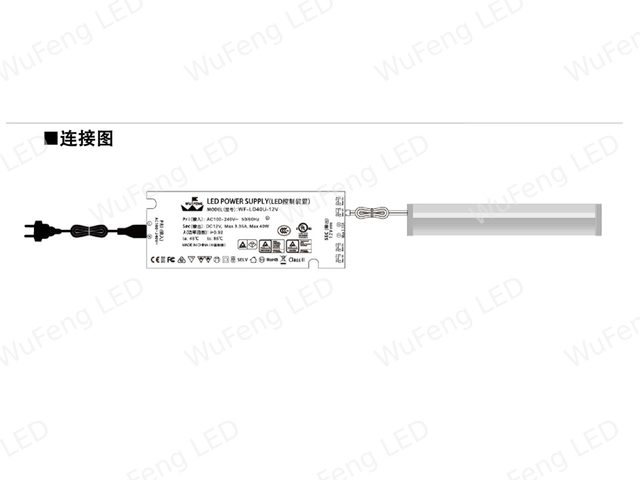

Suitable for cabinets, wardrobes, wine cabinets, display cabinets and shelves. Also applicable for ceiling cove lighting, feature walls and corridor ambient lighting. Slim body adapts to diverse mounting conditions. High‑quality linear lighting achieved with DC12 V low‑voltage power supply.
Suitable for cabinets, wardrobes, wine cabinets, display cabinets and shelves. Also applicable for ceiling cove lighting, feature walls and corridor ambient lighting. Slim body adapts to diverse mounting conditions. High‑quality linear lighting achieved with DC12 V low‑voltage power supply.
| Category | Item | Value |
|---|---|---|
| Product Info | Product Name | Recessed 45° Angle‑Emitting Linear Light |

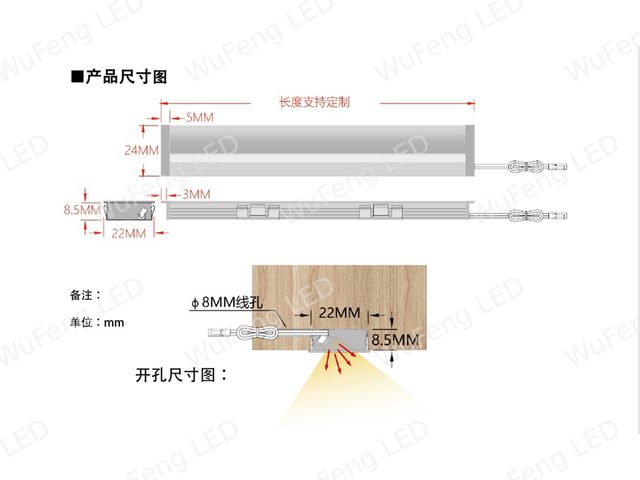

| Cross‑section Size | 24×9 mm | |
| Max Custom Length | 2200 mm | |
| Housing Material | Aluminum alloy + PC | |
| Electrical‑Optical | LED Chip | 2835,120PCS/M |
| Max Power | 10 W/M | |
| Luminous Flux | 410 Lm/M(±10%) | |
| CCT | 2700‑7000 K | |
| CRI | Ra≥90 | |
| Lumen Depreciation | ＜5%@1000h | |
| Environmental | Service Life | ＞20000hrs |
