- Product Overview

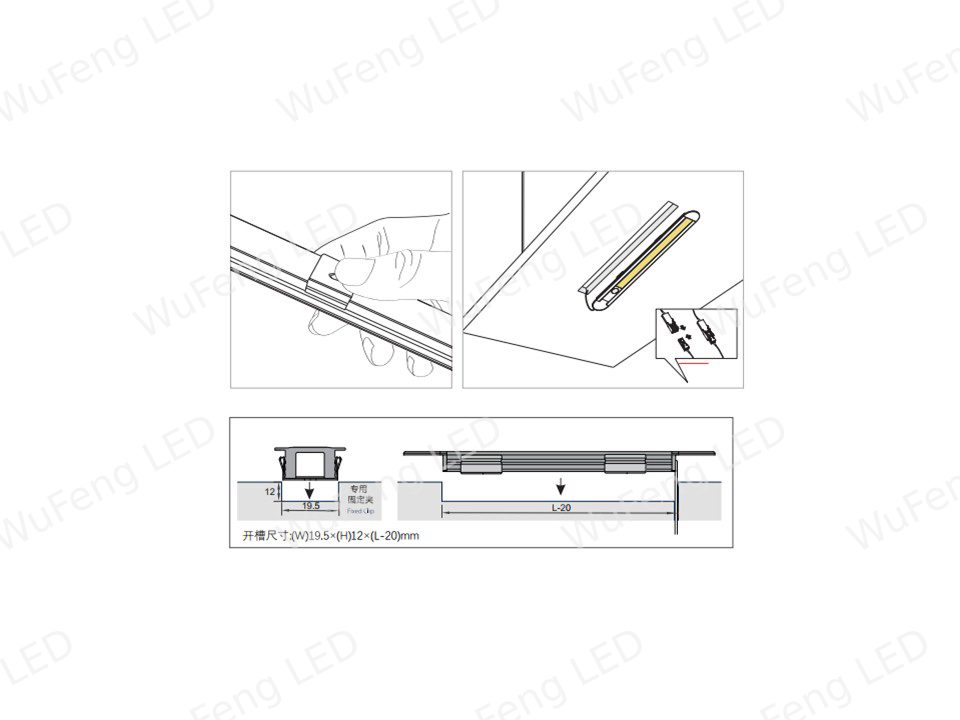

This is a PIR human‑body sensor LED aluminum light bar, specially developed for intelligent cabinet lighting. It adopts embedded installation structure, anodized aluminum lamp body with PC lampshade and stainless‑steel retaining clip. Powered by DC12V, it is widely used in various cabinets to realize automatic lighting triggered by human‑body detection. - Product Features
PIR human‑body sensor control, lights up automatically when people approach. Anodized aluminum profile lamp body provides excellent heat dissipation. PC protective lampshade delivers uniform and soft light output. Stainless‑steel retaining clip ensures stable assembly. Embedded installation saves cabinet space. Wide CCT selection, CRI Ra≥80, low light decay and stable lighting performance. - Functional Advantages
Sensitive sensor, no manual switch required. Wide CCT range 2700K‑6500K to meet diverse lighting demands. Power:10W/M(±10%), luminous flux:460Lm/M(±10%). Light decay＜5%@1000h, little brightness loss for long‑time operation. IP20 protection rating, robust structure. Customizable length to fit cabinets of different sizes. - Application Scenarios
Widely applied to inner lighting of cabinets, display cabinets, wine cabinets and wardrobes. Automatic lighting triggered by human‑body sensor realizes intelligent cabinet lighting without manual operation. - Performance Parameters
Category Item Value Product Information Model WF‑LT2511B‑6028‑PIR‑12V‑T Material AL+PC (Anodized aluminum lamp body + PC lampshade, with stainless‑steel retaining clip) Dimension L×25×11.6mm (Customizable length) Sensing Method PIR Human‑body Sensor Installation Method Embedded Electrical & Optical Input Voltage DC12V Power 10W/M (±10%) CCT 2700‑6500K Luminous Flux 460Lm/M±10% CRI Ra≥80 Light Decay Rate ＜5%@1000h Others Protection Class IP20 Operating Temperature -20℃~+40℃ Storage Temperature -20℃~+60℃ Guarantee Period 20000hrs RoHS Directive (EU)2015/863 Note: All parameters are subject to product test report.
