- Product Overview
WF‑LT2520‑12028‑12V‑T is a high‑brightness LED aluminum light bar. Constructed of aluminum + PC composite material, powered by DC12V low‑voltage. Customizable length up to maximum 2500 mm. Suitable for supplementary lighting of cabinets and display cases.
- Product Features
Aluminum + PC composite material provides good heat dissipation and solid structure. Safe DC12V low‑voltage input. Custom‑cut length available, max. 2500 mm. 240 pcs 2835 LEDs per meter with high‑density arrangement for even light output. Wide CCT range 2700K‑6500K to meet various lighting demands.
- Functional Advantages
Max power 20W/M, luminous flux 620‑740 Lm/M for sufficient brightness. CRI Ra≥80 delivers true‑to‑life color reproduction. Light decay＜5%@1000h, stable brightness during long‑term operation. Service life＞20000 hrs. Operating temperature ‑20℃~+40℃, storage temperature ‑20℃~+60℃, strong environmental adaptability.
- Application Scenarios

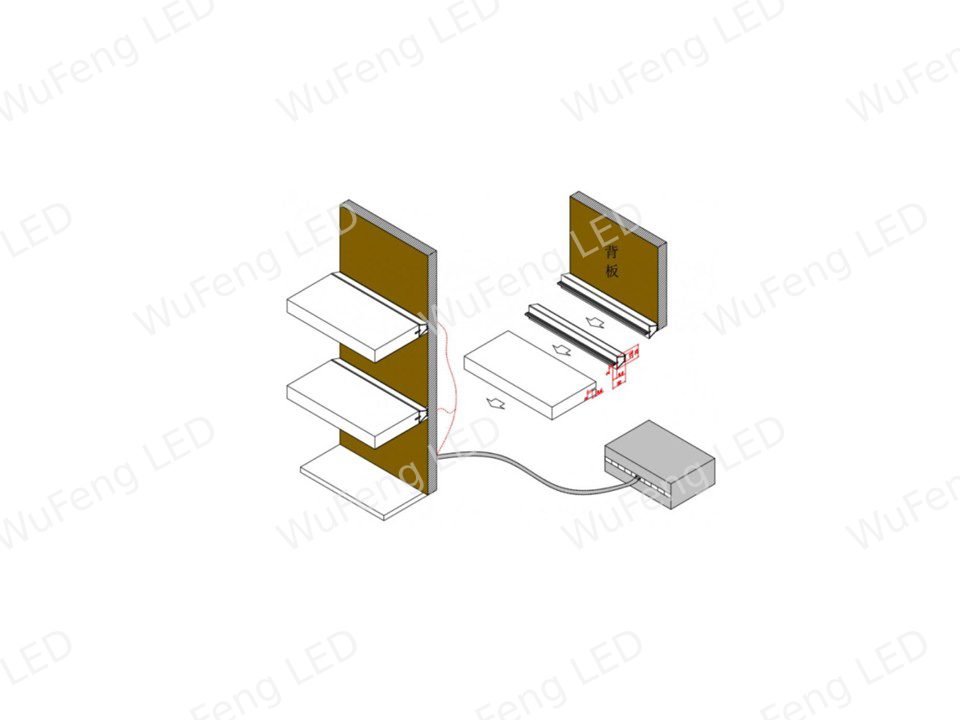

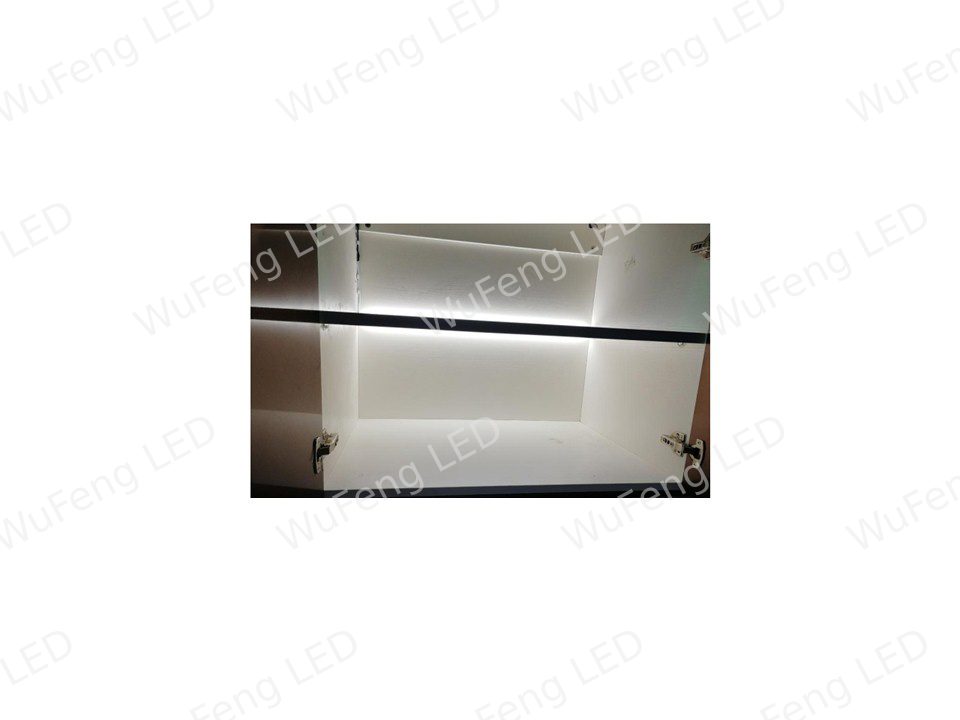

Widely used for indoor lighting of kitchen cabinets, display cabinets, wine cabinets, shelves and other furniture. Ideal for household and commercial applications requiring high‑brightness supplementary lighting.
- Performance Parameters

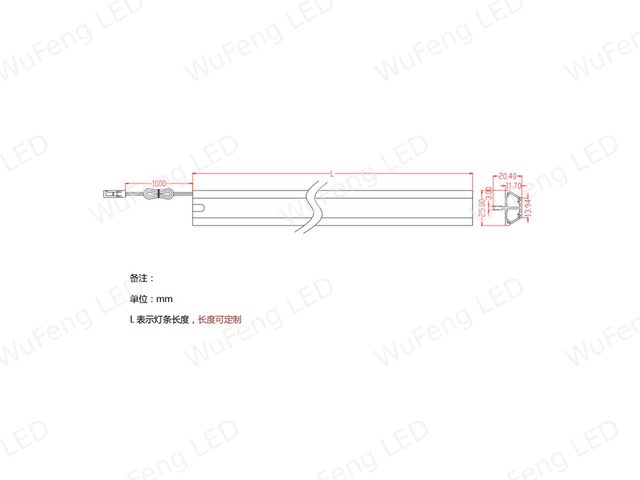

Category Item Value Product Information Model WF‑LT2520‑12028‑12V‑T Dimension 2520.4L mm (L=length, max 2500 mm, customizable) Material Aluminum + PC Electrical Parameters Power Supply DC12V Power MAX 20W/M Optical Characteristics LED Type 2835 LED Quantity 240PCS/M CCT 2700K‑6500K Luminous Flux 620‑740Lm/M CRI Ra≥80 Light Decay Rate ＜5%@1000h Environment & Lifetime Service Life ＞20000hrs Operating Temperature -20℃~+40℃ Storage Temperature -20℃~+60℃ Note: All parameters are subject to actual product test report.
