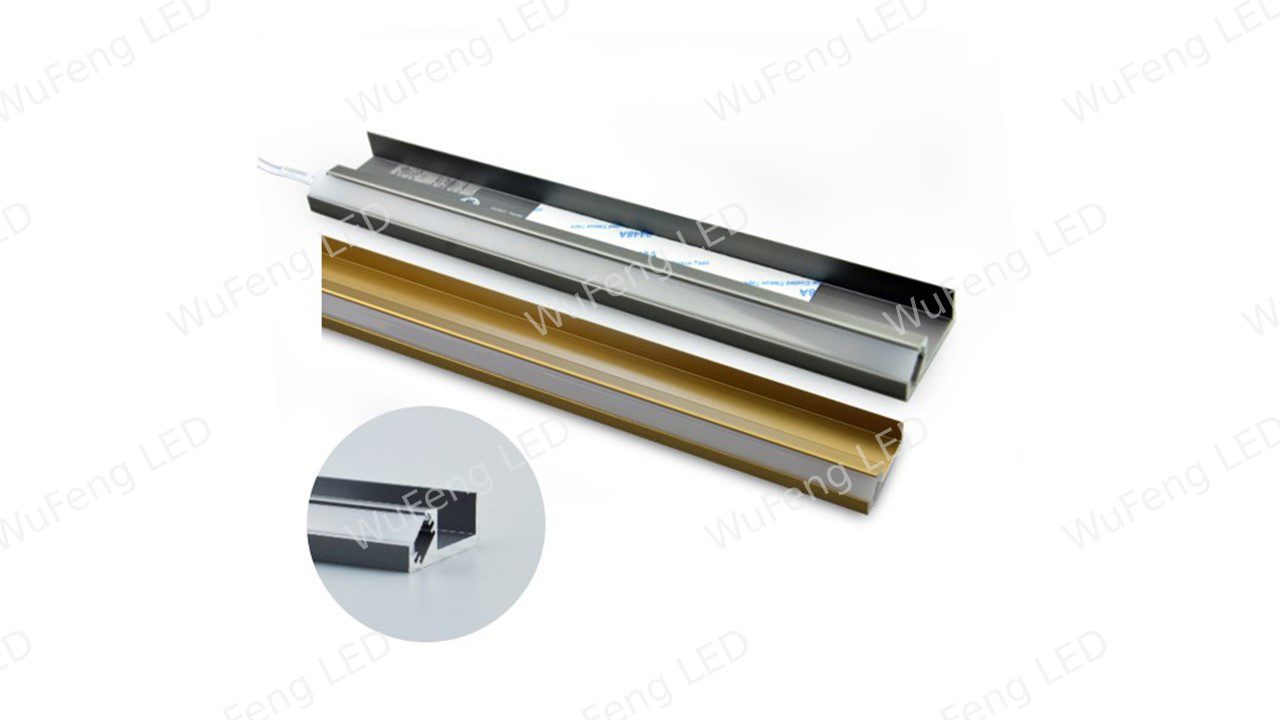

Front-mounted LED Shelf Light
- Model：
- WF-LT3312-6028WW-12V
- LED density：
- 120/米
- CCT：
- 2700-6500K可定制
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- 10W/米
- Installation Methods：
- SurfaceMounted
- Certifications：
- Features：
- This product is a front-mounted angled-emission LED aluminum strip light, designed primarily for localized lighting in cabinets, display showcases, wine cabinets, wardrobes and other furniture. Its beveled light output design serves a dual function — providing illumination while acting as a shelf edge guard — creating uniform, gentle cabinet lighting. Overall dimensions can be customized to special specifications upon request, and length supports custom production.
- Product Features
Low energy consumption design, energy-saving and eco-friendly with a long service life; brushed surface finish for a premium texture; operates on DC12V low voltage for safe and reliable use; aluminum alloy + PC main body construction, sturdy and durable, compatible with various cabinet shelves.
- Lighting Advantages

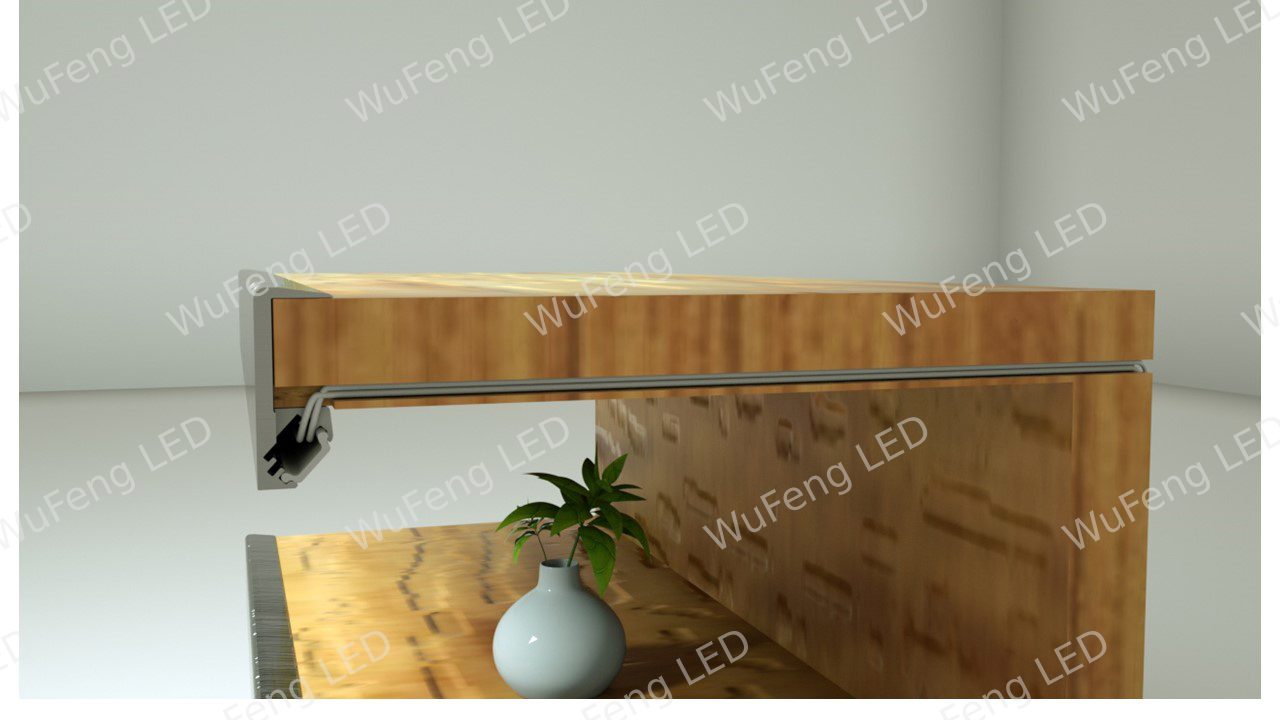

With its front-mounted angled structure, light projects from the front edge of the shelf into the cabinet, delivering uniform and soft output that effectively avoids direct glare. The fixture also doubles as a shelf edge trim — one product, two functions — combining illumination with decorative appeal to create more even and comfortable lighting inside the cabinet.

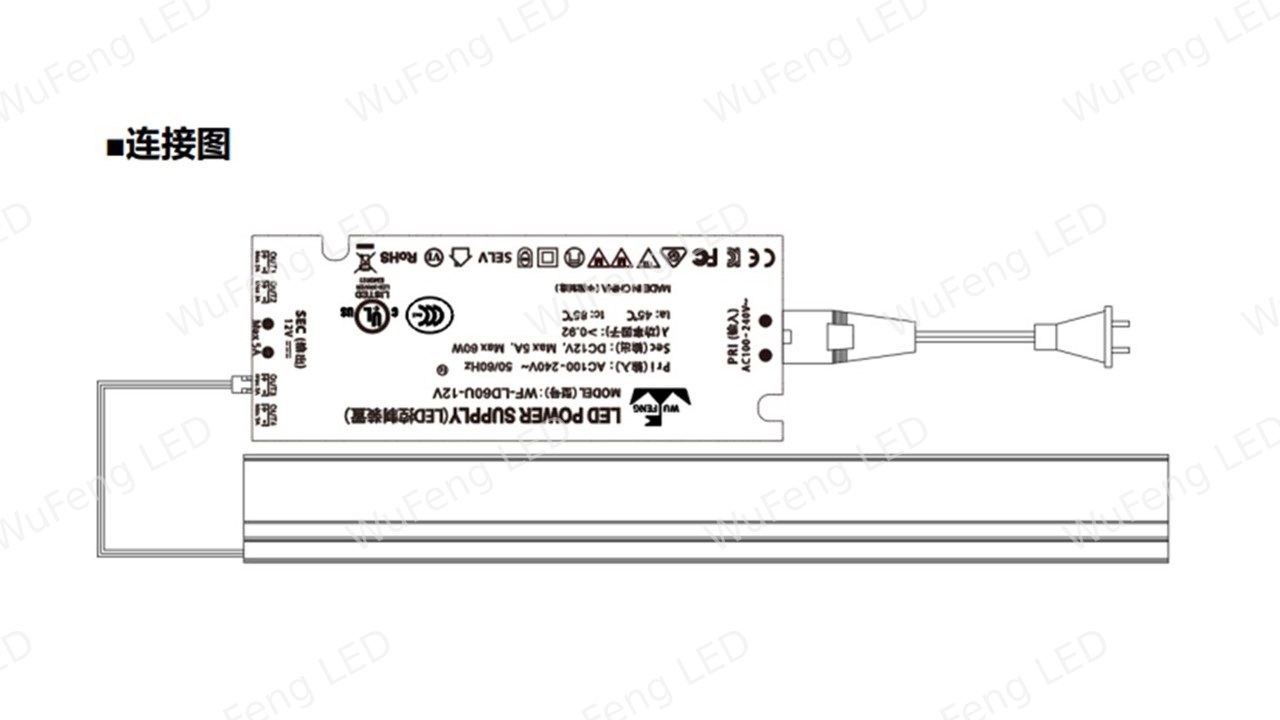

- Installation
Shelf clip mounting: Simply clip the fixture onto the front edge of the shelf to secure it — no drilling required, preserving the cabinet integrity. Easy and convenient installation, compatible with cabinet shelves of various thicknesses.
- Applications

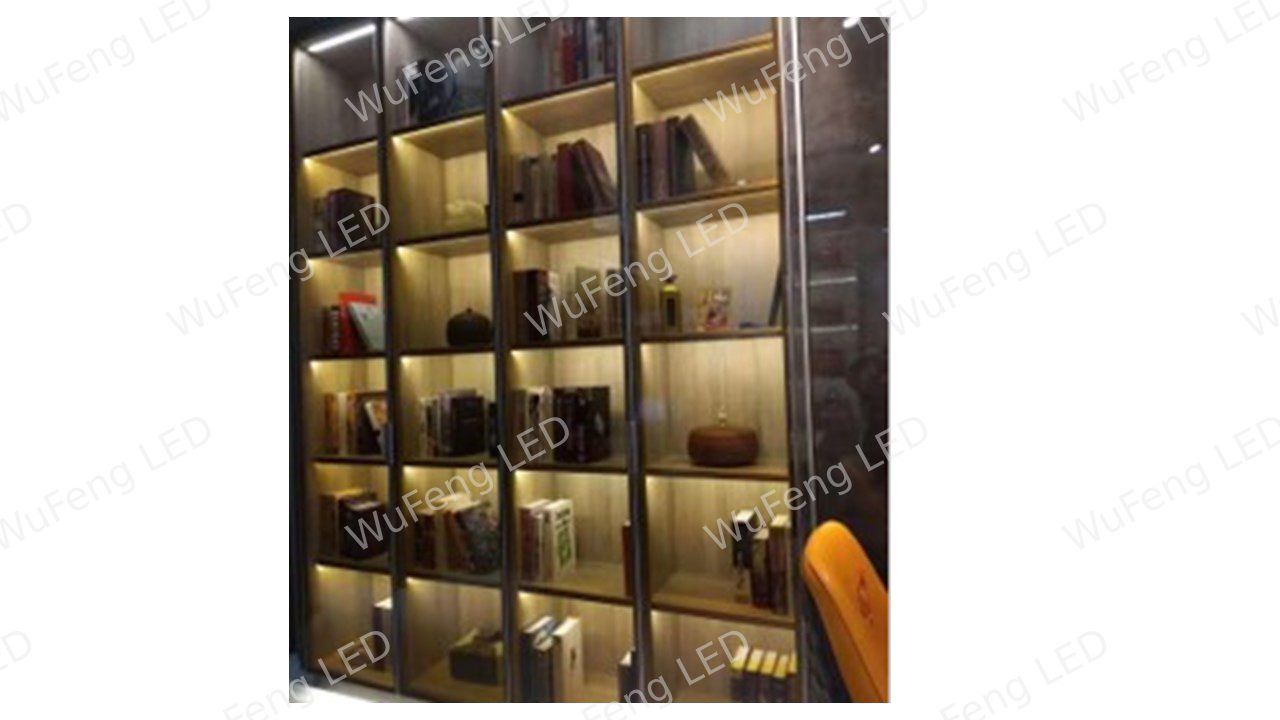

Widely suitable for localized lighting in residential cabinets, wine cabinets, wardrobes, commercial display showcases and other cabinet lighting scenarios.
Model: WF-LT3312-6028WW-12V
| Category | Parameter | Value |
|---|---|---|
|
Appearance |
Material | AL + PC |
| Color | Iron Gray, Silver, Black, Bronze, Chocolate, etc. | |
| Surface Finish | Brushed | |

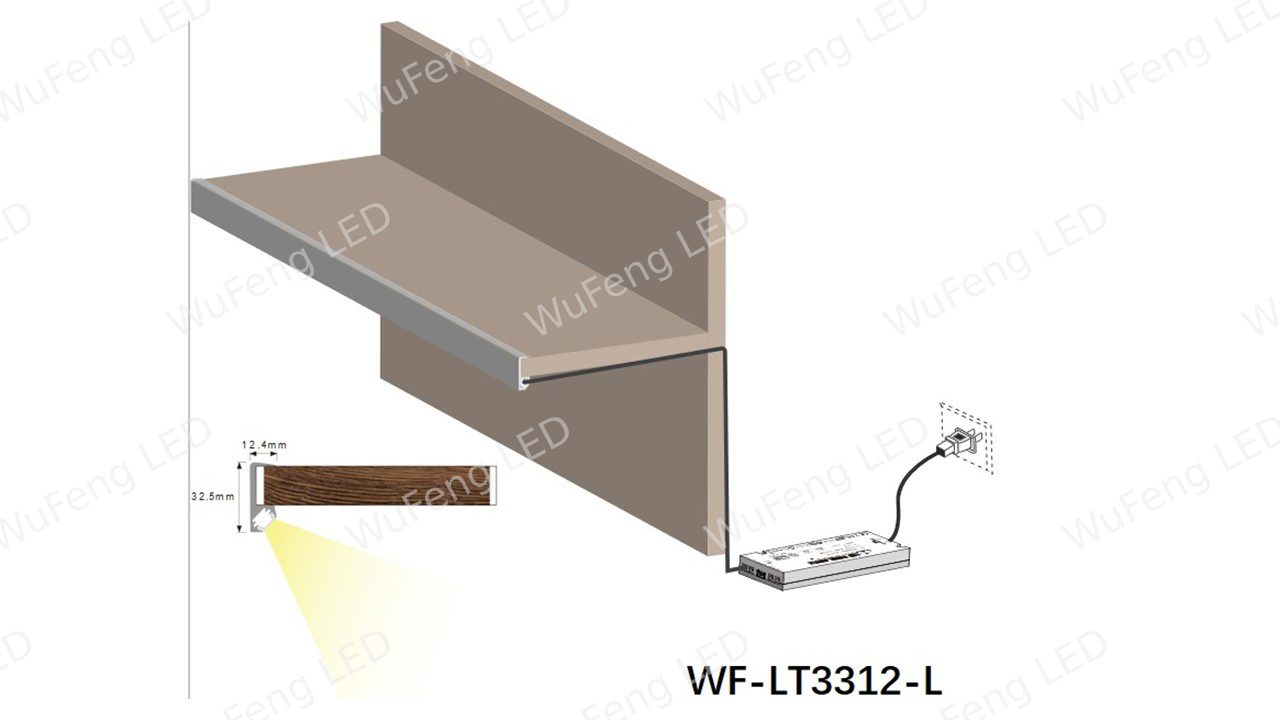

| Dimensions | 32.5×12.4×L (customizable length) | |
|
Electrical |
Voltage | DC12V |
| Power (Max) | 10W/M | |
|
Optical |
LED Type | 2835 |
| LED Quantity | 120Pcs/M | |
| Beam Angle | 120° | |
| Color Temperature | 2700-6500K | |
| Luminous Flux | 320-380Lm/M | |
| Color Rendering Index | RA≥80 | |
| Lumen Depreciation | <5%@1000h | |
|
Others |
Operating Temperature | -20℃～+50℃ |
| Storage Temperature | -20℃～+60℃ | |
| IP Rating | IP20 | |
| Lifespan | ＞20000hrs |
Note: The above parameters may vary due to color temperature and other factors; specific data is subject to the actual test report.
