Corner Uniform‑light Linear Light
- Model：
- WF-LTV12C-6028-12V
- LED density：
- 120灯/米
- CCT：
- 2700-6500K
- CRI：
- 90
- IP Rating：
- IP 20
- Power：
- 10W
- Installation Methods：
- PitMounted
- Certifications：
- Features：
- This LED cabinet light is designed for partial supplementary lighting of cabinets, display cabinets and wine cabinets. It makes full use of furniture right‑angle position for light distribution to deliver even and comfortable cabinet lighting effect.
- Product Features
Low‑energy‑consumption design, energy‑saving and eco‑friendly, long service life. Soft light output, stable overall performance. Low‑voltage operation for safe and reliable use, simple and easy installation.
- Lighting Advantages

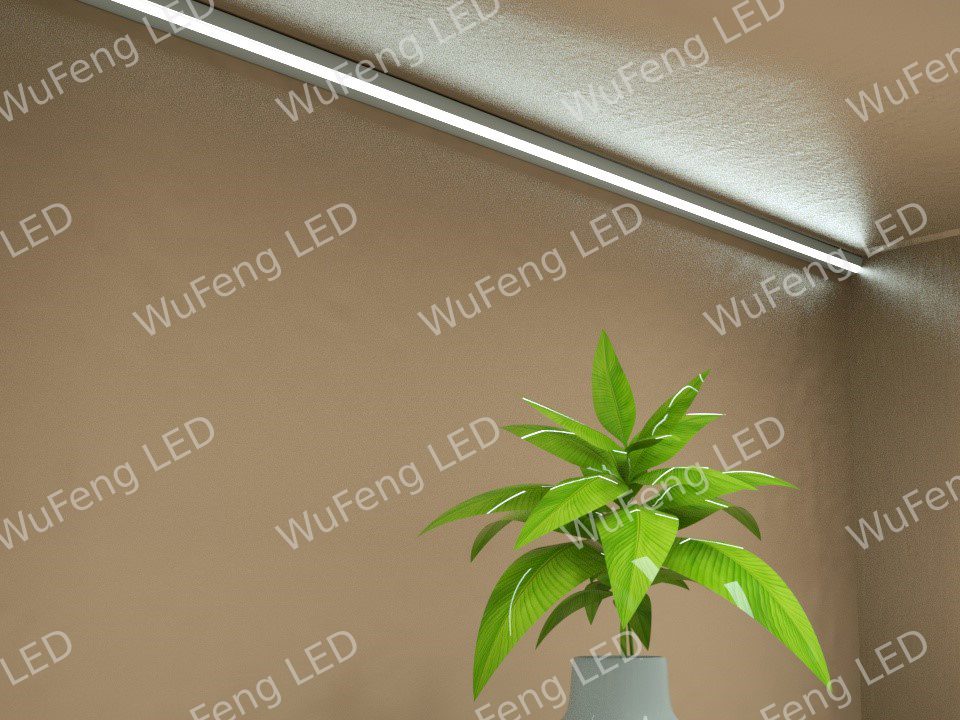

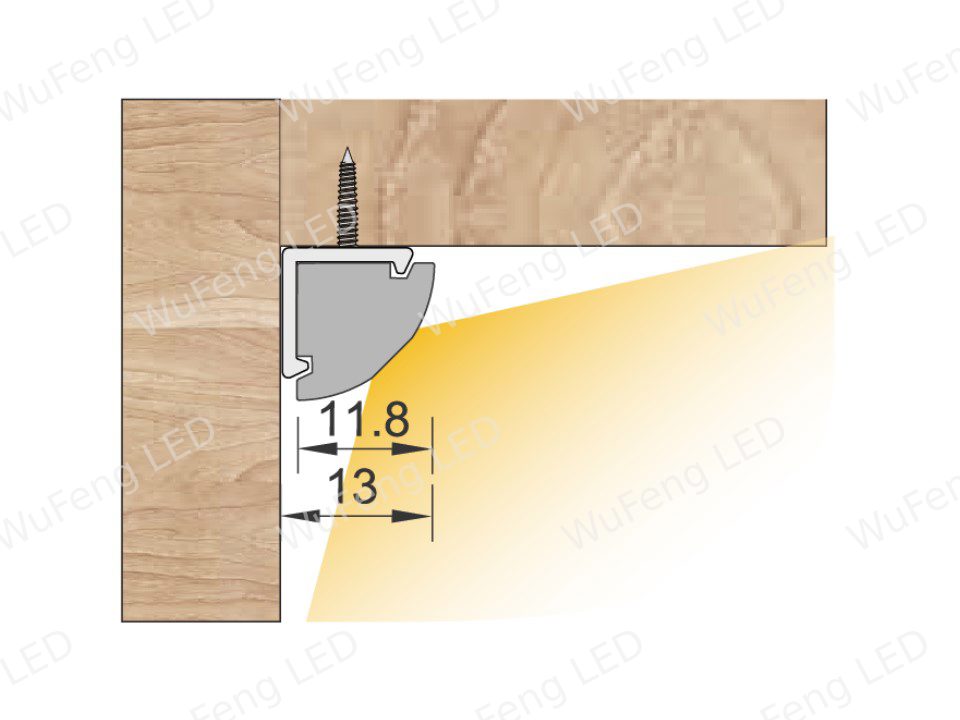

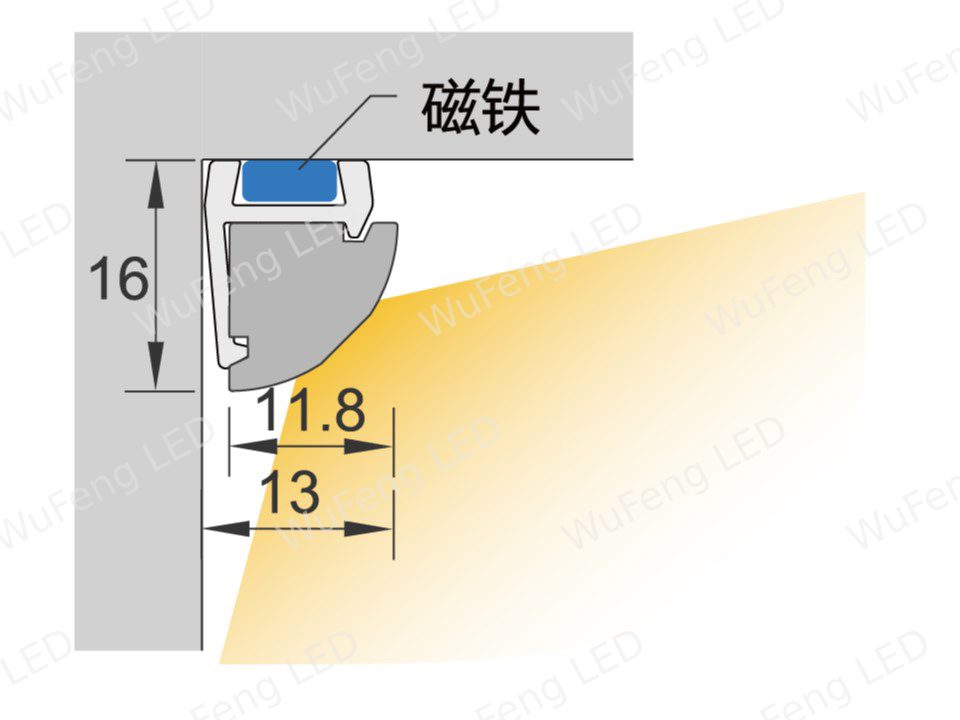

With right‑angle structure, light projects into cabinet interior from furniture corner, effectively eliminating dark corners and achieving brighter and more uniform illumination inside cabinets.
- Application Scenarios
Widely used for partial lighting of household cabinets, wine cabinets, wardrobes and commercial display cabinets.
| Category | Item | Value |
|---|---|---|
| Appearance | Material | AL + Silicone |
| Color | Satin silver, iron gray, bronze, black, etc. | |
| Surface Finish | Brushed | |

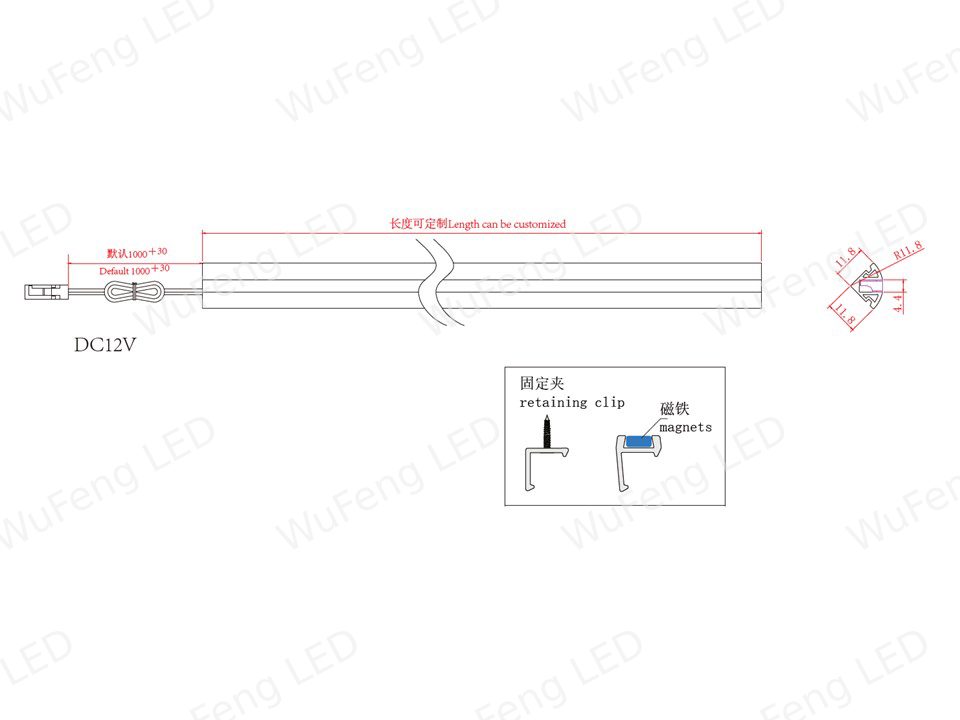

| Dimension | 11.811.8L (customizable length) | |
| Electrical Characteristics | Voltage | DC12V |
| Max. Power | 10W/M | |
| Optical Characteristics | LED Model | 2835 |
| LED Quantity | 120Pcs/M | |
| Beam Angle | 120° | |
| CCT | 2700‑6500K | |
| Luminous Flux | 380‑460Lm/M | |
| CRI | RA≥90 | |
| Light Decay | ＜5%@1000h | |
| Others | Operating Temperature | -20℃～+50℃ |
| Storage Temperature | -20℃～+60℃ | |
| IP Rating | IP20 | |
| Lifespan | ＞20000hrs |
