Door‑Activated Sensor Drawer Light
- Model：
- WF-LTV1617-IR-12V；WF-LTV1617B-IR-12V
- LED density：
- 120灯/米
- CCT：
- 2700-6500K
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- Max10W/M
- Certifications：
- Features：

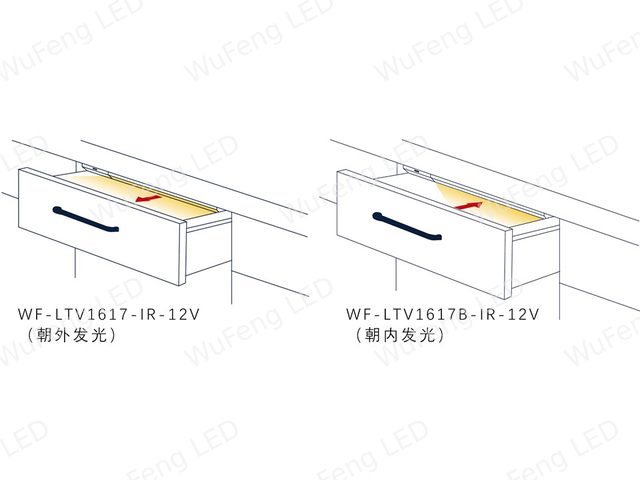

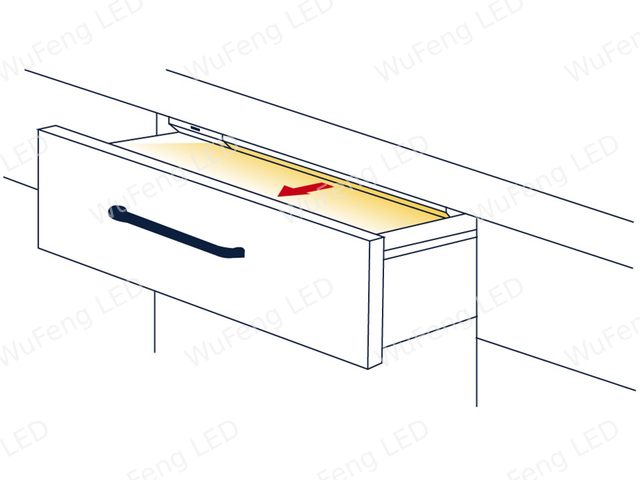

- Drawer light with door‑operated sensor. Light turns on when cabinet door in front of sensor opens, turns off when door closes.
●Sensor Control

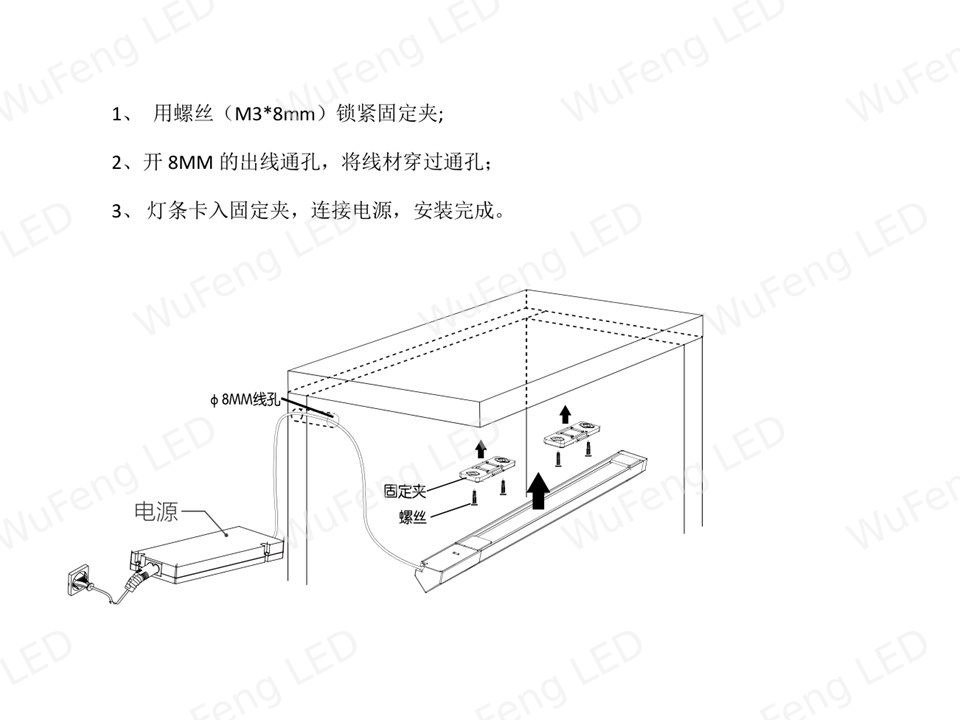

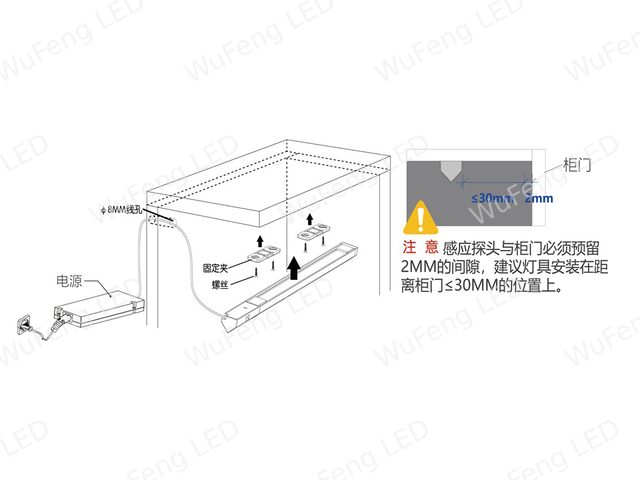

Adopts infrared hand‑sweep sensing technology, sensing distance 3‑8 cm, sensitive and fast response. Turn light on/off by hand‑waving without touching panel. Convenient and hygienic for cooking and other scenarios with occupied hands. Clip‑on installation for easy, firm assembly and disassembly, no complicated construction required.
Adopts infrared hand‑sweep sensing technology, sensing distance 3‑8 cm, sensitive and fast response. Turn light on/off by hand‑waving without touching panel. Convenient and hygienic for cooking and other scenarios with occupied hands. Clip‑on installation for easy, firm assembly and disassembly, no complicated construction required.
●Structure & Craft
Housing made of AL aluminum alloy with anodized surface treatment, anti‑corrosion, wear‑resistant with premium texture. Silver / Iron‑grey two‑color options available. PC translucent light‑diffusing cover delivers even soft light and effectively reduces glare. Clip‑on mounting fits various cabinet conditions. Each unit individually packed in PE bag for safe transportation and storage.
Housing made of AL aluminum alloy with anodized surface treatment, anti‑corrosion, wear‑resistant with premium texture. Silver / Iron‑grey two‑color options available. PC translucent light‑diffusing cover delivers even soft light and effectively reduces glare. Clip‑on mounting fits various cabinet conditions. Each unit individually packed in PE bag for safe transportation and storage.
●Optical Performance
Equipped with 2835 LED chips at high‑density layout of 120PCS/M. Max power 10W/M, luminous flux 220‑280Lm/M. 45° beam angle provides precise light coverage. Adjustable CCT range 2700‑6500K (±200K). CRI RA≥80 for authentic color reproduction. Lumen depreciation＜5%@1000h, service life＞20000hrs, stable brightness for long‑term operation.
Equipped with 2835 LED chips at high‑density layout of 120PCS/M. Max power 10W/M, luminous flux 220‑280Lm/M. 45° beam angle provides precise light coverage. Adjustable CCT range 2700‑6500K (±200K). CRI RA≥80 for authentic color reproduction. Lumen depreciation＜5%@1000h, service life＞20000hrs, stable brightness for long‑term operation.
●Application Scenarios
Suitable for cabinet lighting of kitchen cabinets, wardrobes, wine cabinets, bookcases and display cabinets. Clip‑on mounting ideal for new‑built cabinets and retro‑fit renovation projects. Hand‑sweep sensor fits kitchens, walk‑in closets and other occasions where touching switches is inconvenient. Achieve smart lighting upgrade when matched with DC12V low‑voltage power supply.
Suitable for cabinet lighting of kitchen cabinets, wardrobes, wine cabinets, bookcases and display cabinets. Clip‑on mounting ideal for new‑built cabinets and retro‑fit renovation projects. Hand‑sweep sensor fits kitchens, walk‑in closets and other occasions where touching switches is inconvenient. Achieve smart lighting upgrade when matched with DC12V low‑voltage power supply.
| Category | Item | Specification |
|---|---|---|
| Product Info | Model | WF‑LTV1617‑6028‑IR‑12V‑T WF‑LTV1617B‑6028‑IR‑12V‑T |

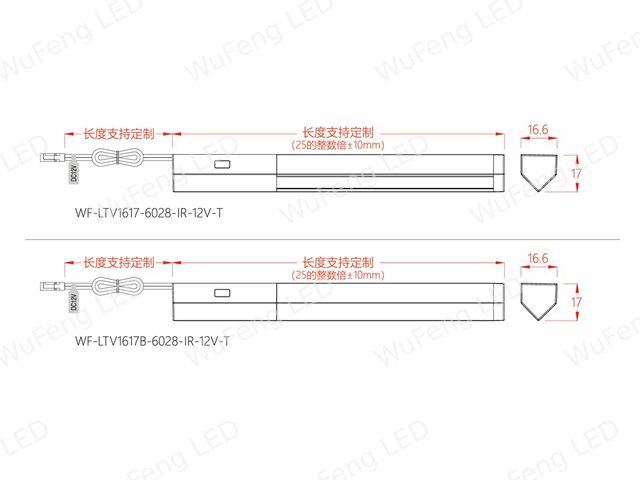

| Dimension | 16.6×17×L (customizable length) mm | |
| Housing Material | AL anodized (Silver / Iron Grey) | |
| Diffuser Material | PC light‑diffusing translucent | |
| Installation | Clip‑on mounting | |
| Packaging | PE bag | |
| Electrical Parameters | Input Voltage | DC12V |
| Max Power | 10W/M | |
| Switch Mode | Hand‑sweep sensor | |
| Sensing Distance | 3‑8CM | |
| Optical Parameters | Beam Angle | 45° |
| LED Type | 2835 | |
| LED Quantity | 120 PCS/M | |
| Luminous Flux | 220‑280Lm/M | |
| CCT | 2700‑6500(±200)K | |
| CRI | RA≥80 | |
| Lumen Depreciation | ＜5%@1000h | |
| Environmental Parameters | IP Rating | IP20 |
| Service Life | ＞20000hrs | |
| Operating Temp. | ‑20℃~+50℃ | |
| Storage Temp. | ‑20℃~+60℃ | |
| RoHS | Compliant |
