- Control Mode:
Adopts mechanical door‑trigger principle. High‑sensitivity copper spring contact bead. Circuit turns on when door opens as the bead springs up; circuit cuts off when door closes as the bead is pressed down. Realizes automatic light linkage with fast and stable response, no additional settings needed.
- Structure & Craft:
Housing made of flame‑retardant PC with flammability rating 94V‑0, safe and reliable. Two mounting options: spring‑bead type and copper‑post type, adapting to different cabinet thicknesses. Copper spring contact bead delivers excellent conductivity, wear‑resistant and long‑lasting. Recessed installation, concealed for neat appearance without spoiling overall cabinet style. Each unit individually packed in PE bag.
- Electrical Performance:
Wide input voltage DC5‑24V (±5%), compatible with various low‑voltage LED lamps. Max. output current 2A; Max. power 24W@12V with strong load capacity. Input port: Mx2.54‑2Y; Output port: Mx2.54‑2A for convenient and stable wiring. IP20 protection rating; service life＞20000hrs.
- Application Scenarios:

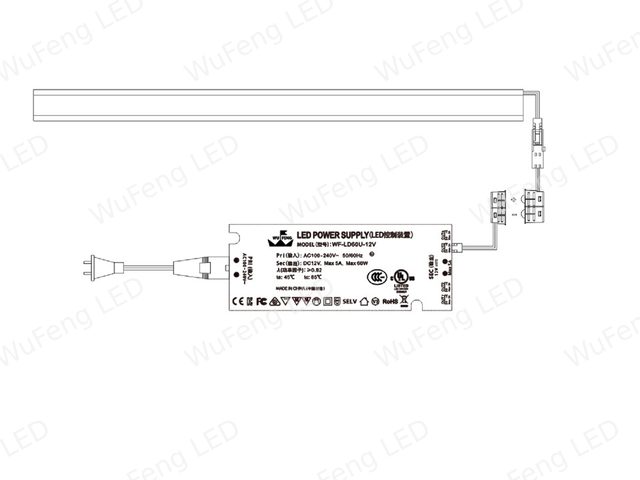

Automatic light control for wardrobes, cabinets, wine cabinets, bookcases and storage cabinets. Recessed mounting ideal for new cabinets and high‑end renovation projects. Paired with low‑voltage LED strips to realize smart lighting: light‑on when door opens, light‑off when door closes.
| 구분 | 항목 | 값 |
|---|---|---|
|
제품정보 |
모델 | WF‑CN1810‑T |

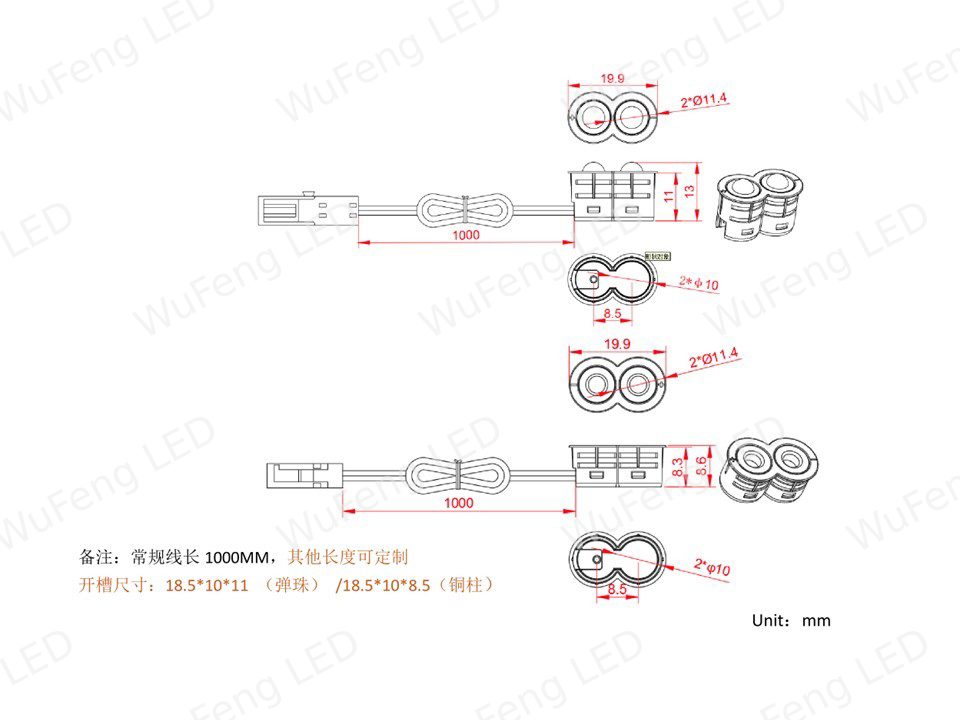

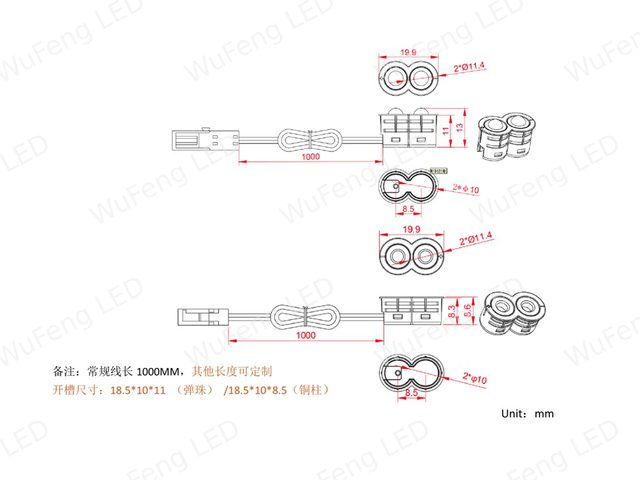

| 규격 | 19.9×11.4×13mm(스프링구) / 19.9×11.4×8.6mm(동기둥) | |
| 홈가공 사이즈 | 18.5×10×11mm(스프링구) / 18.5×10×8.5mm(동기둥) | |
| 하우징 소재 | PC | |
| 스프링 접촉구 | 구리 | |

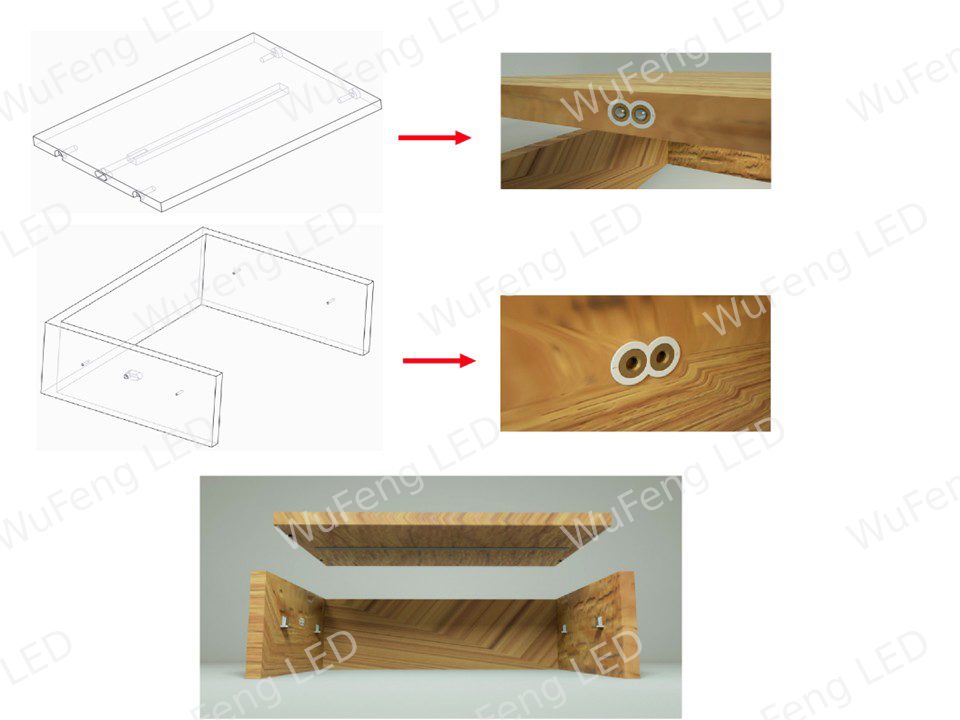

| 설치방식 | 매립식 | |
| 포장 | PE봉지 | |
|
전기파라미터 |
입력전압 | DC5‑24V(±5%) |
| 최대출력전류 | 2A | |
| 최대전력 | 24W @12V | |
| 입력포트 | Mx2.54‑2Y | |
| 출력포트 | Mx2.54‑2A | |
| 보호등급 | IP20 | |
|
환경파라미터 |
난연등급 | 94V‑0 |
| 수명 | ＞20000hrs | |
| 작동온도 | ‑20℃~+40℃ | |
| 보관온도 | ‑20℃~+60℃ | |
| RoHS | 적합 |
