Embedded Door‑operated / Wave‑sensor Metal Switch
- Model：
- WF-LC16M-IR/GIR
- Input voltage：
- DC5-24V
- IP Rating：
- IP20
- Installation Methods：
- PitMounted
- Certifications：
- —
- Features：
- High‑quality aluminum alloy housing, embedded cut‑out installation. Two control modes: door‑operated sensor and wave‑hand sensor. Two output versions available: 3‑second fade‑in/fade‑out and non‑dimming. The wave‑sensor version features automatic obstacle‑sensing distance calibration. Built‑in over‑load and short‑circuit protection. Sensing distance: 3‑6 cm. Stable and reliable performance, ideal for automatic lighting of wardrobes, kitchen cabinets, wine cabinets and other cabinet units.
- Product Features
This series includes two controllers: door‑sensor and hand‑wave sensor. WF‑LC16M‑IR is the door‑sensor model; light turns on when door opens and turns off when door closes. WF‑LC16M‑GIR is the hand‑wave sensor model; wave your hand to toggle the light on/off. Adopting flush‑mount installation, aluminum alloy housing with 94V‑0 flame‑retardant rating, 3‑6 cm sensing distance, sensitive response. Suitable for various cabinet lighting retrofits, safe and stable in operation.
- Structure & Process
Aluminum alloy housing, flush‑mount design with compact structure for easy assembly inside cabinets. 94V‑0 flame‑retardant rating delivers excellent fire‑safety performance.
- Electrical Performance
Input voltage DC5‑24V (±5%); Max. load power 36W @12V; 3‑6 cm sensing distance with responsive detection.
- Operating Environment
Operating temperature ‑20℃~+40℃, storage temperature ‑20℃~+60℃. Suitable for long‑term use in cabinets, wardrobes and other furniture environments.
- Application Scenarios
Widely used in lighting systems for wardrobes, kitchen cabinets, wine cabinets and more to realize intelligent sensor‑controlled cabinet lighting.
| Category | Parameter Item | Parameter Value |
| Product Information | Model | WF‑LC16M‑IR (Door‑sensor) / WF‑LC16M‑GIR (Hand‑wave sensor) |
| Housing Material | AL (Aluminum Alloy) | |
| Installation Method | Flush‑mount | |
| Flame‑retardant Rating | 94V‑0 | |
| Electrical Performance | Input Voltage | DC5‑24V (±5%) |
| Max. Load Power | 36W @12V | |
| Sensing Distance | 3‑6 cm | |
| Switching Mode | Door‑sensor: Light on when door opens, light off when door closes; Hand‑wave sensor: Wave hand once to toggle on/off | |
| Environmental Parameters | Operating Temperature | ‑20℃~+40℃ |
| Storage Temperature | ‑20℃~+60℃ |
Note: Actual data shall be subject to the test report.

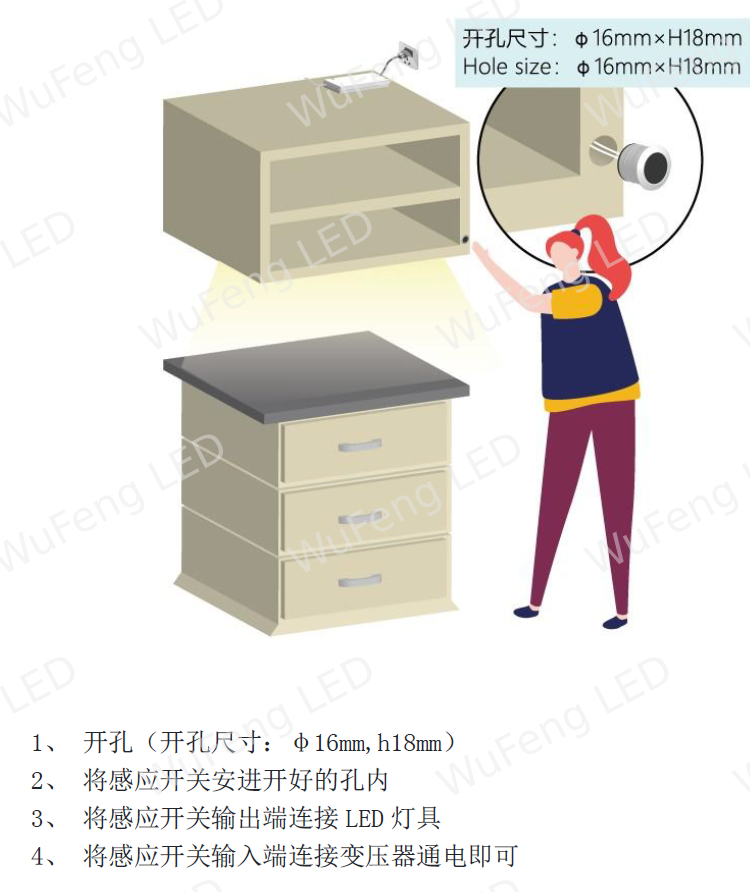

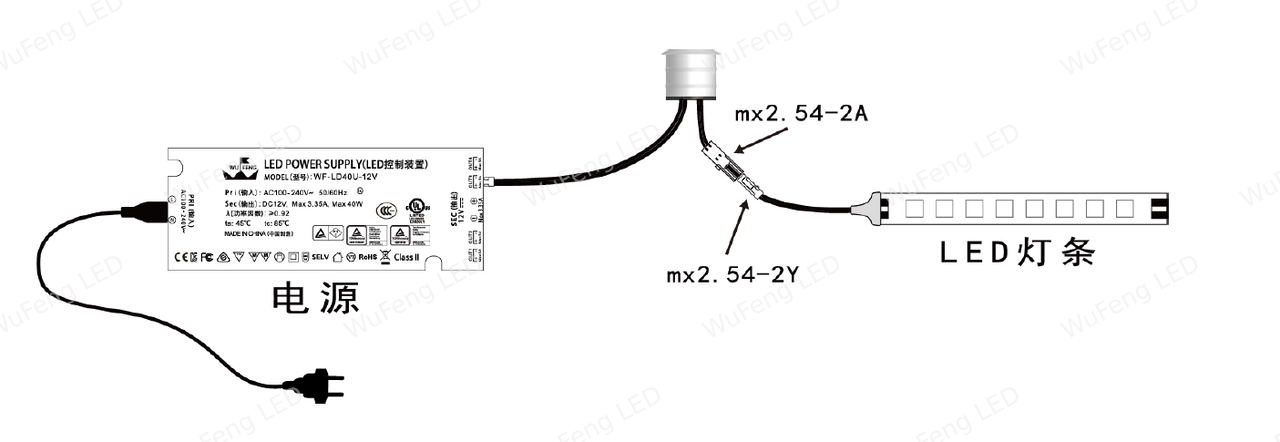

Wiring Diagram
