Product Description

Model：: WF-LQ1208-L
LED density：: 120/米
CCT：: 2700-6500K
CRI：: 90
IP Rating：: IP20
Power：: 8W/M（±10%）
Installation Methods：: PitMounted
Certifications：

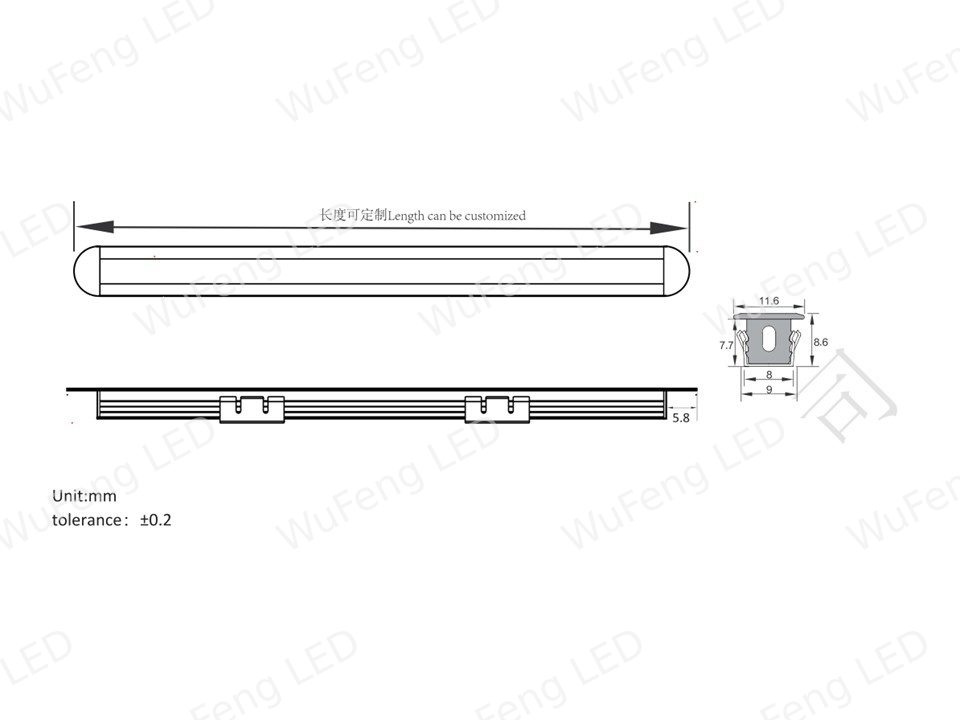

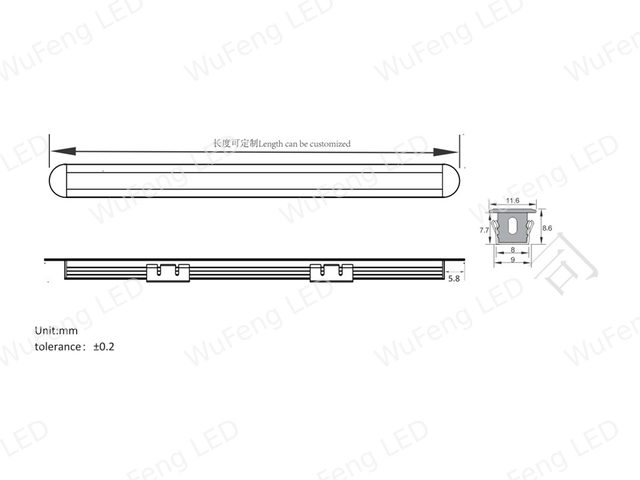

Features：: Ultra‑thin Recessed Linear Light This recessed shelf light is an LED linear luminaire specially designed for partial decorative lighting of furniture. Adopting recessed concealed installation with slim 11.6×8.6 mm body, it is firmly mounted with stainless‑steel clips. Suitable for ambient decorative lighting of cabinets, display cabinets, shelves and other furniture.

Installation

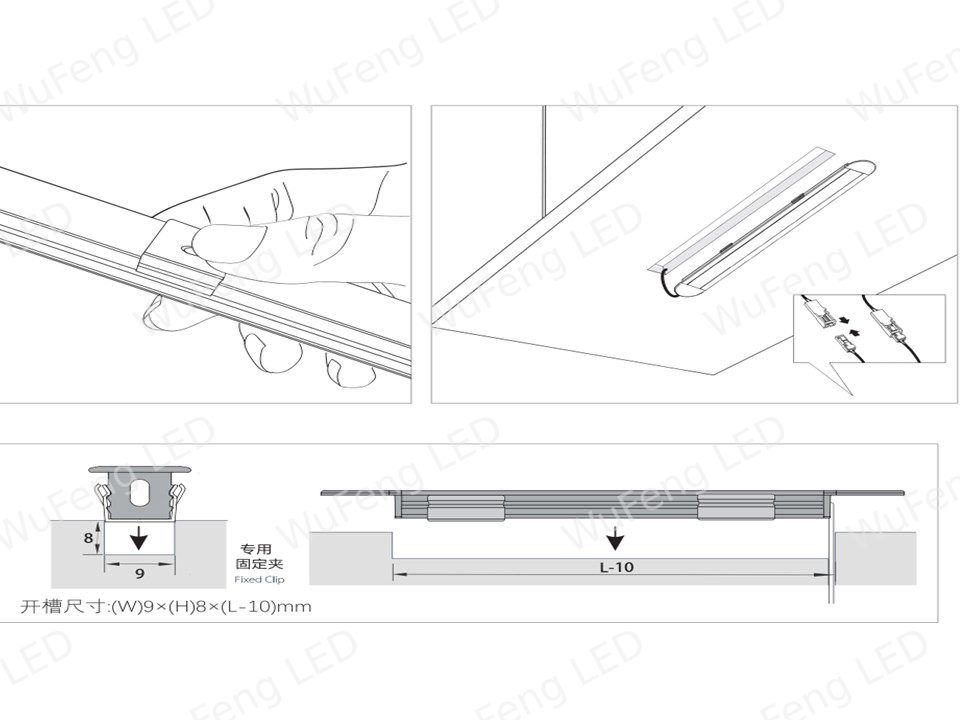

Recessed mounting. After slotting the cabinet, secure with stainless‑steel clips. The light sits flush with cabinet surface without protrusion. Custom lengths available for various cabinet sizes, easy and efficient installation.
Structure & Craft
Anodized aluminum housing for excellent heat dissipation, corrosion‑resistance and wear‑resistance. PC cover delivers even soft light and reduces glare. Stainless‑steel mounting clips, sturdy and deformation‑resistant. Concealed wiring for neat appearance.
Optical & Electrical Performance
Safe low‑voltage DC12V; Power: 8W/M (±10%). CCT 2700K‑6500K optional; Luminous flux: 390Lm/M (±10%); CRI Ra≥80; Lumen depreciation＜5%@1000h; Service life: 20000hrs, stable long‑term brightness.
Application:
Cabinets, display cases, shelves, wine cabinets, bookcases and other furniture partial decorative lighting. Ideal for new cabinets and high‑end display projects. Works with low‑voltage power supply to enhance ambience and merchandise presentation
