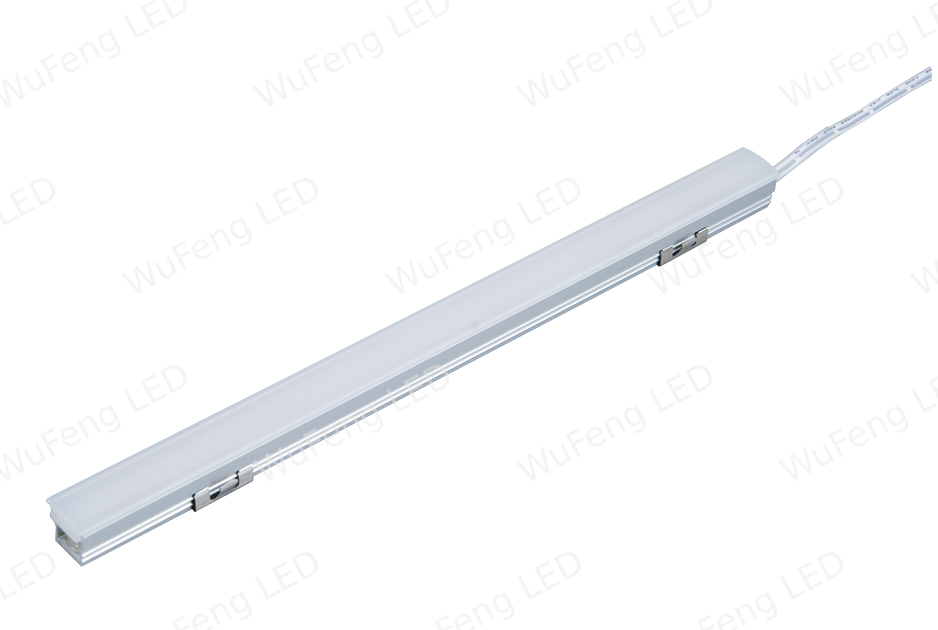

Recessed Linear Light
- Model：
- WF-LT1211B-6028-12V
- LED density：
- 120LEDs 120LEDs/m
- CCT：
- 2700-6500K
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- 10w/m
- Installation Methods：
- PitMounted
- Certifications：
- Features：
- WF‑LT1211B‑6028‑12V‑T recessed LED linear light, DC12V power supply, surface & concealed mounting, Ra≥90, soft light output. Suitable for indoor no‑main‑lamp and cabinet lighting, 20000hrs warranty, RoHS compliant.
-
Product FeaturesDual-use design for surface and recessed mounting, flexible installation; anodized aluminum housing with excellent heat dissipation and fade-resistant anodizing finish; silicone cover for soft and uniform light output; stainless steel fixing clips for secure embedded installation; CRI RA≥80 for true color reproduction and low light decay; supports length customization, DC12V low-voltage safe power supply.
-

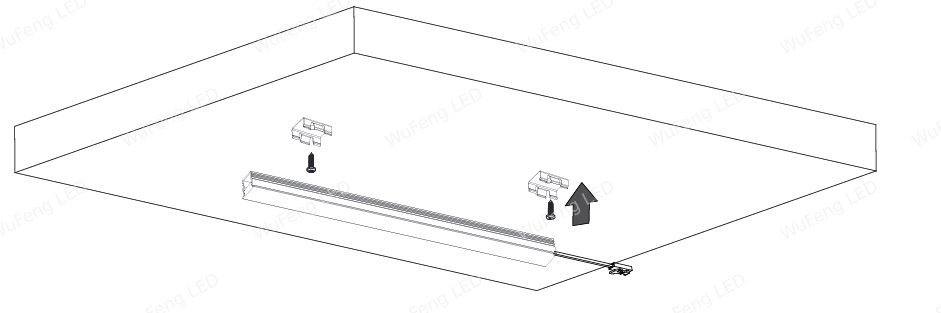

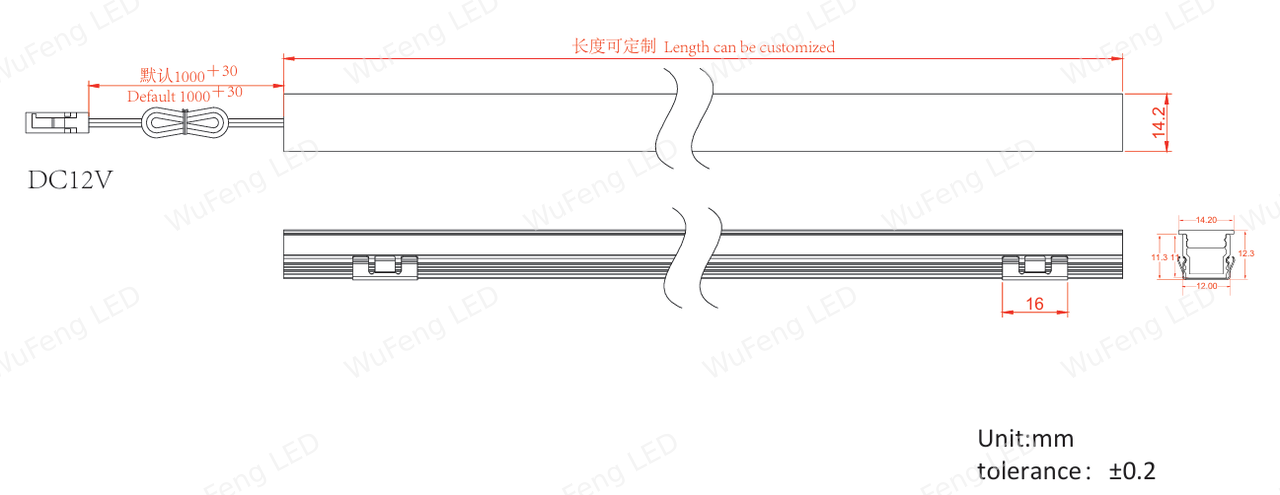

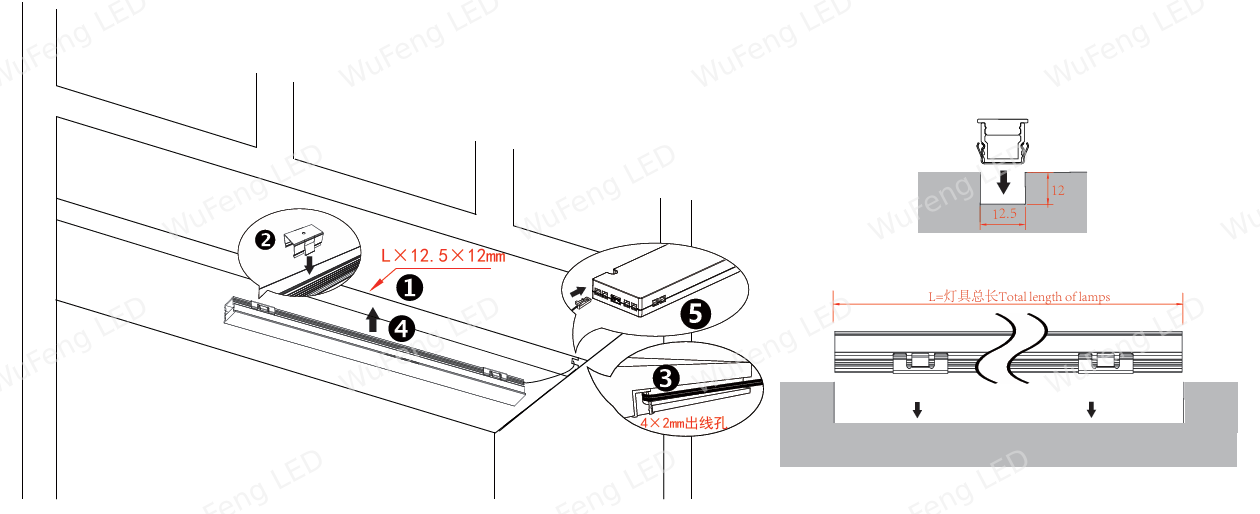

Structure & MaterialHousing: anodized aluminum; cover: silicone; fixing clips: stainless steel; product dimensions: 14.2 (W) × 12.3 (H) × L (Length) mm, length customizable; supports surface mounting and recessed groove installation.
-
Electrical PerformanceInput voltage: DC12V, power: Max 10W/M; CCT: 2700K–6500K, luminous flux: 450 (±10%) Lm/M, CRI RA≥90; light decay rate <5%@1000h, protection rating IP20.
-
Operating EnvironmentOperating temperature: -20℃~+40℃, storage temperature: -20℃~+60℃; warranty: 20,000 hours; complies with RoHS (EU) 2015/863 environmental directive.
-

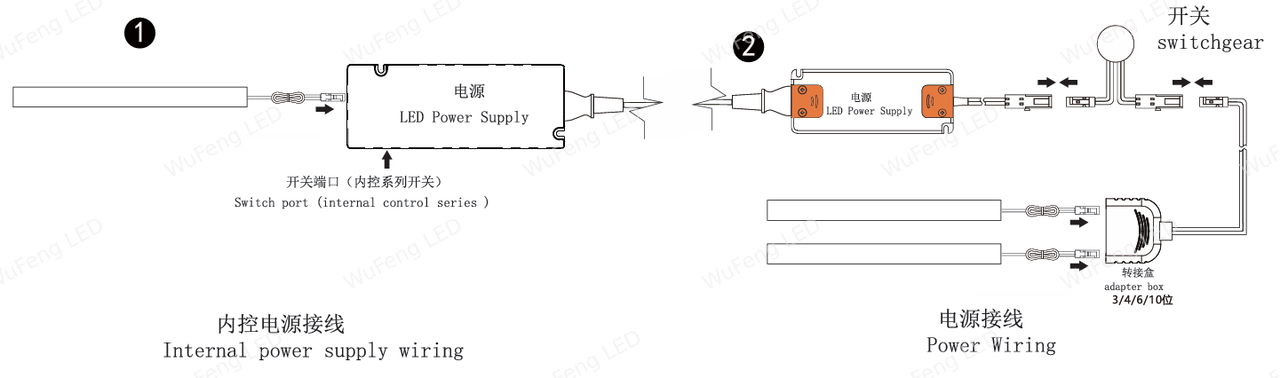

ApplicationsSuitable for ceiling main-light-free lighting, cabinets, wine cabinets, wardrobes, display cases, indoor ambiance and accent lighting; can be connected to various dimming drivers for dimming control.
Specification Table
|
Category
|
Parameter
|
Specification
|
|
Exterior Structure
|
Product Dimensions
|
14.2×12.3×Length (mm)
|
|
Housing Material
|
Anodized Aluminum
|
|
|
Cover Material
|
Silicone
|
|
|
Clip Material
|
Stainless Steel
|
|
|
Installation
|
Mounting Type
|
Surface / Recessed
|
|
Electrical Parameters
|
Input Voltage
|
DC12V
|
|
Power
|
Max 10W/M
|
|
|
CCT
|
2700K - 6500K
|
|
|
Luminous Flux
|
450(±10%) Lm/M
|
|
|
CRI
|
RA ≥ 90
|
|
|
Other Parameters
|
Light Decay Rate
|
<5% @1000h
|
|
Protection Rating
|
IP20
|
|
|
Warranty
|
20000 hours
|
|
|
Operating Temperature
|
-20℃ ~ +40℃
|
|
|
Storage Temperature
|
-20℃ ~ +60℃
|
|
|
RoHS Directive
|
(EU)2015/863
|
